Furnace Camera provides high-resolution images.
February 8, 2010 -
Mounted through wall of industrial furnace, heater, or combustion chamber, water-cooled Furnace Camera HD enables direct video monitoring and recording of steel-making processes. NEMA 4 junction/interface box includes power supply, camera adjustment interface, RS170 analog video output, termination, and temperature readout. Available in 24, 31, and 36 in. long models, camera features optical lens technology that enables operation in hostile environments up to 4,250°F.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Lenox Instrument Co.
267 Andrews Rd., Scottsville Industrial Park
Trevose, PA, 19053 3427
USA
Furnace Camera HD Enables Clear, Direct Video Monitoring and Recoring of Various Steel-Making Processes....... New from Lenox Instrument Company
Trevose, PA, - Lenox Instrument Company has announced the addition of its next generation, high-temperature, video camera system specifically designed to be mounted directly through the wall of all types of industrial furnaces, heaters, or other combustion chambers. The new Furnace Camera HD provides steel mill engineers and operators clear, high-resolution images of burner flames, material alignment and movement inside the furnace, and other "high-heat" process conditions in iron and steel manufacturing.
Lenox Furnace Camera HD Systems are widely used by the steel and metals industry to view raw material, pellets and sintering operations, vacuum degassers, molten metal pouring stations, continuous casters, reheat furnaces, continuous annealers, galvannealers, and other steel finishing operations.

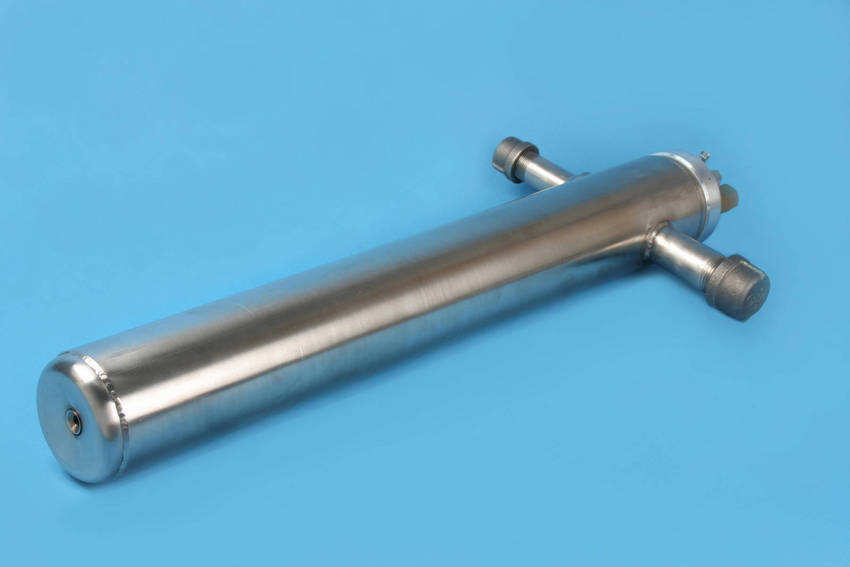

The Furnace Camera HD System's stainless steel camera housing mounts in a 3.5 inch (89 mm) opening and employs a steel triple wall laminar flow for efficient water-cooled protection of the CCD color camera and the latest optical lens technology, enabling operation in hostile environments up to 4250°F (2345°C). Models are available in 24 inch (61 cm), 31 inch (79 cm), and 36 inch (92 cm) lengths.
Lenox, high-temperature, Furnace Camera HD Systems are supplied with a NEMA 4 (IP66) junction/interface box that includes camera power supply, camera adjustment interface, RS170 analog video output, and termination and temperature readout for the provided temperature sensor that monitors internal camera housing temperature during operation. Ethernet or Fiber Optic outputs are also available as options. Furnace Camera HD Systems can be configured with a variety of lens options, including zoom capability.
Furnace Camera HD System accessories include an Automatic Retract System that pulls the camera back on loss of cooling, preventing over-temperature damage and a Monitoring Station to provide a local point of connection and status monitoring of coolant flow, purge air pressure, and electrical connections.
Each Lenox Furnace Camera HD System is designed, manufactured in the U.S.A. and serviced in-house by Lenox Instrument, and is backed by an industry-leading two-year warranty.
For more than 80 years, Lenox Instrument Company has been serving the defense, power generation, and industrial markets by solving their most challenging, and often, hostile remote image acquisition. Located outside Philadelphia, in Bucks County PA, Lenox is a leading global manufacturer and supplier of premier Remote Vision Instruments (R.V.I.) Lenox offers a full line of borescopes, videoscopes, and light sources. Lenox also manufactures FireSightŪ, our exclusive line of high temperature boiler and furnace camera systems. All Lenox products are factory-serviced and backed by industry-leading warranties.
|
|
|
|
|
|
|
|
