Frequency Translator/Jitter Filter translates inputs between 8-250 MHz.
April 18, 2012 -
SFX-525G frequency translator and 20 Hz jitter attenuator translates an input between 8 kHz to 100 MHz to output frequencies between 8-250 MHz. It provides jitter filtered, wander following output signal synchronization to superior GPS, Stratum or peer input reference signal and supports FEC rates such as 15/14 and 255/237. IC is designed for use in line and service termination cards to provide phase-locked synchronization for network equipment.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Connor-Winfield Corp., The
2111 Comprehensive Dr.
Aurora, IL, 60505
USA
Connor-Winfield Releases New Precision Jitter Filter and Frequency Translator

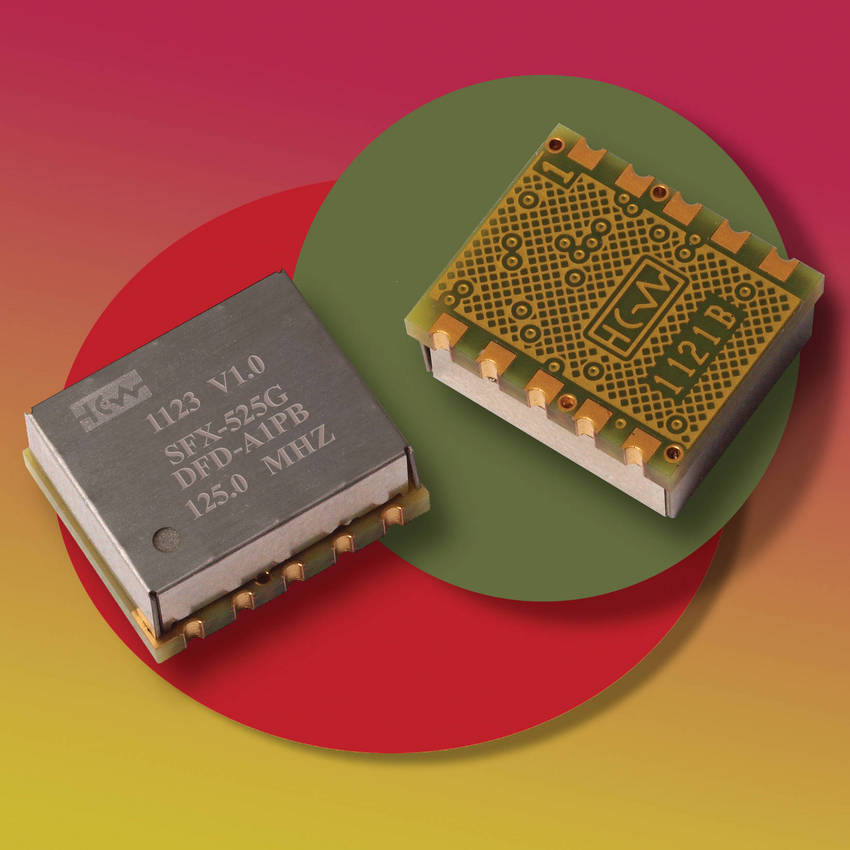

Aurora, IL - Connor-Winfield announces the release of the SFX-525G high precision frequency translator and 20 Hz jitter attenuator that translates an input between 8 kHz to 100 MHz to output frequencies between 8MHz to 250MHz. This IC is well suited for use in line cards, service termination cards and similar functions to provide reliable reference, phase locked synchronization for TDM, PDH, SONET and SDH network equipment.
The SFX-525G provides jitter filtered, wander following output signal synchronization to a superior GPS, Stratum or peer input reference signal and supports all major FEC rates such as 15/14 and 255/237. The SFX-525G also includes a lock detect alarm output. Output jitter is less than 0.16 ps rms.
Features:
20 Hz Jitter filter and frequency translator
Jitter generation OC-192 compliant
Typical output jitter 0.16 ps rms at 155.52 MHz
Input Frequencies from 8 kHz to 100 MHz
Frequency translation up to 250 MHz
Alarm detection for loss of lock/loss of reference condition
Space saving 12x14mm leadless package
3.3V high precision PLL
Connor-Winfield products are designed and produced in the USA.
Price: $16 each for 10K volume
|
|
|
|
|
|
|
|
