Foot Controls feature IP65 rating.
January 24, 2013 -
Constructed of die cast aluminum, Clipper II Series is available with IP65 rating and stainless steel hardware, which is suitable for use in applications exposed to elements. Rigid mounting holes are provided, allowing user to mount foot switch to floor or piece of equipment. Twin models for multifunction applications are also available.
Original Press release
Linemaster Switch Corp.
29 Plaine Hill Rd., P.O. Box 238
Woodstock, CT, 06281
USA

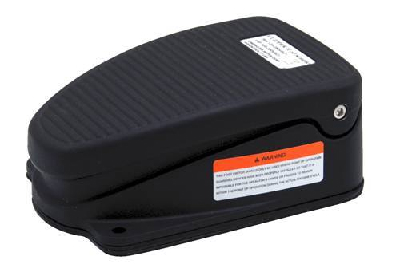

Linemaster's Clipper II Foot Control
Woodstock, CT, Linemaster Switch Corporation introduces a new line of foot controls, the Clipper II series. The Clipper II foot control shares many of the same qualities as the standard Clipper models, except it is constructed of rugged die cast aluminum and is a little larger in size. Standard off the shelf models are available with an Ingress Protection rating of IP65 and stainless steel hardware, which is very handy in inclement weather or applications where the foot switch will be exposed to the elements. Rigid mounting holes are provided in the foot switch allowing the user to mount the foot switch to the floor or a piece of equipment. Twin models for multifunction applications are also available as a stock off the shelf item.
|
|
User comments about this story
linemaster 632-s clipper foot switch
how do i connect the wires to it ? what is nc...no and c stand for what wires go where??
By dan on Mar 7, 2013 00:25
Reply to this comment
Replies to this comment:linemaster 632-s clipper foot switch
Hi Dan,
The "C" stands for "Common"
The "NC" stands for "Normally Closed"
The "NO" stands for "Normally Open"
When wiring a 632-S Clipper foot switch you want to attach your hot lead to the Common terminal and your remaining lead to the "Normally Closed" terminal. The will produce a normally open function because the microswitch is preloaded (meaning the plunger is engaged when the pedal is at rest).
Hope this Helps.
By Jim Logsdon - Linemaster Switch Corp. on Mar 7, 2013 11:22
|
|
|
|
|
|
|
|
|
