Food Grade Disc Pumps serve continuous dosing applications.
August 10, 2011 -
With seal-less design that enables leak-free operation without requiring magnetic couplings or mechanical seals, Micro C-Series exhibits consistent performance minimally affected by fluctuations in pump pressure or product viscosity. Self-priming and dry-run capabilities, combined with degree of suction lift, enables complete clearing of pipes in transfer and metering applications with flow rates from 0.26-211 gph. Also, pumps meet sanitary requirements of 3A, FDA, and EHEDG.
Original Press release
MOUVEX
ZI la Plaine de Isles, 2 rue des Caillottes
Auxerre, ,
France

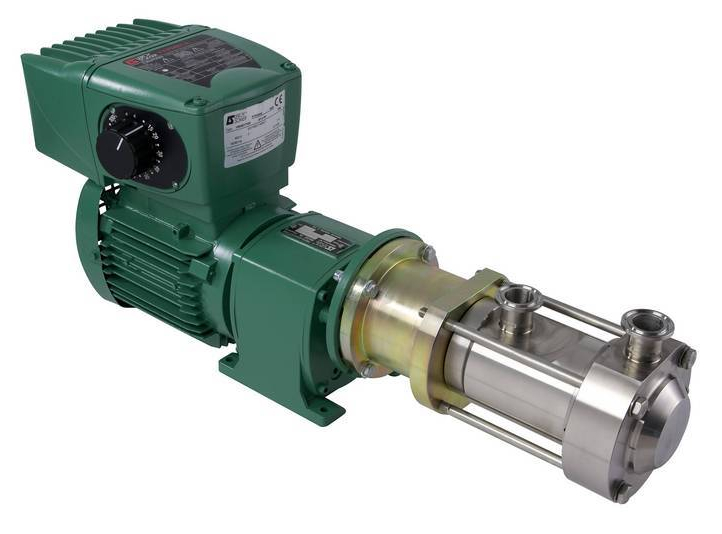

Mouvex® Micro C-Series Eccentric Disc Pumps Ideal for Continuous Dosing Applications in Food Processing
Auxerre, France - Mouvex®, a leading manufacturer of positive displacement pumps and creator of eccentric disc pump technology, announced that its Micro C-Series Eccentric Disc Pumps have been designed to meet the requirements of various continuous dosing applications within the food processing industry.
Mouvex's Micro C-Series pumps can handle these diverse challenges because they are constructed with an innovative seal-less design. This design allows the pumps to provide leak-free operation without the need for magnetic couplings or mechanical seals. The design also results in consistent pump performance that is minimally affected by fluctuations in pump pressure or product viscosity, while providing low shear.
The Micro C pumps have been designed for continuous transfer and metering applications, with flow rates from 1 to 800 liters per hour (0.26 to 211 gallons per hour). Stainless-steel construction and shear-sensitive operation make the Micro C pumps ideal for food processing applications, as they also meet the stringent sanitary requirements of 3A, FDA and European Hygienic Equipment and Design (EHEDG) certification. The pumps also have clean-in-place (CIP) capabilities that are enhanced by their lack of a product retention zone.
The smaller footprint of Micro C pumps make them easy to integrate into the tightest operating environments. They have excellent self-priming and dry-run capabilities with strong suction lift that enables the ability to completely clear pipes, even with high-viscosity products. Maintenance is fast and easy thanks to their quick-dismantling design.
The Micro C is the smaller series of eccentric disc pumps from Mouvex. The Mouvex original C-Series pumps are capable of handling viscosities of up to 10,000 Cp, working pressures up to 9 bar (130 psi) and capacities of 15 to 600 lpm (4 to 158 gpm).
For more on Mouvex Eccentric Disc pumps, please go to www.mouvex.com. Mouvex is an operating company within Pump Solutions Group (PSG(TM)). For more information on PSG, please go to www.pumpsg.com.
Mouvex® was incorporated in 1906 and is a leading manufacturer of positive displacement pumps and compressors for the transfer of liquids or dry bulk products worldwide. Through a global network of distributors and original equipment manufacturers, Mouvex serves the following markets: refined fuels, oilfield, energy, food /sanitary, military, transport and chemical process. Mouvex-headquartered in Auxerre, France-is a member of Dover Corporation's Pump Solutions Group (PSG).
|
|
|
|
|
|
|
|
