Flowmeter handles high viscosity liquids.
June 25, 2002 - H.O.G. positive displacement flowmeter has temperature range up to 850°F, is pressure rated up to 3,000 psig, and has ±0.25% or better accuracy on viscous applications above 100 cstks. Flow range is 0.02 to 25 gpm. It is made of 316 stainless steel with other materials optional, and is available with variety of end connections including standard male NPT.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Hoffer Flow Controls, Inc.
107 Kitty Hawk Lane
Elizabeth City, NC, 27909 6726
USA
Positive Displacement Flowmeters

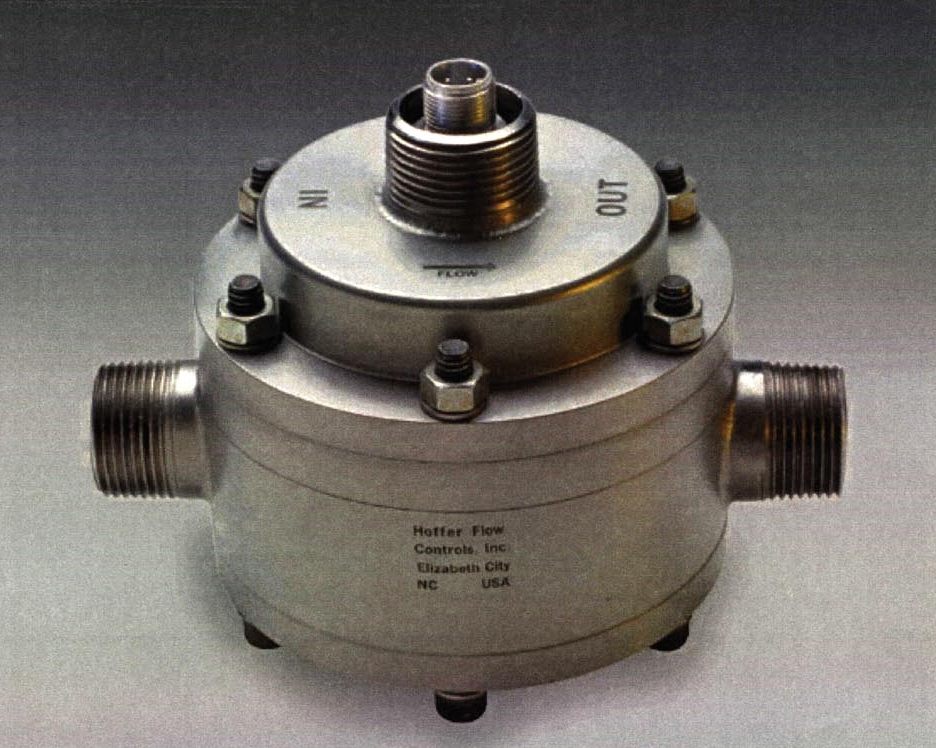

Designed for industrial use, the H.O.G. positive displacement flowmeter is constructed of 316 stainless steel with other materials of construction optional. Available with a variety of end connections including the standard male NPT, this product has a high temperature range of up to +850°F, is pressure rated up to 3000 psig standard, and has been independently tested at ±.25% or better accuracy on viscous applications above 100 cstks. Flow range is .02 to 25 gpm. The smooth gear design offers a number of advantages over traditional gear type positive displacement flowmeters. The H.O.G. flowmeter allows the user to obtain higher flow rates on high viscosity liquids. Additionally, the Hoffer design provides a significantly higher K-factor than other gear type flowmeters. This provides better flowmeter resolution particularly at the lower flow rates. Hoffer offers a comprehensive line of signal conditioners and converters along with rate indicators, totalizers, and flow computers to augment the H.O.G. Series. For further information contact:
Hoffer Flow Controls, Inc.
Janna Critcher, Marketing Coordinator
P.O. Box 2145
Elizabeth City, NC 27906
Tel: 1-800-628-4584 nationwide
252-331-1997
Fax: 252-331-2886
Sales inquiries: John Gannon, Marketing Manager
E-MAIL: jfg@hofferflow.com
www.hofferflow.com
|
|
|
|
|
|
|
|
