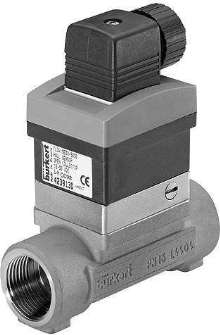

Flow Sensor handles high pressures and temperatures.
October 22, 2003 -
Type 8030HT paddle-wheel flow sensor accommodates neutral and slightly aggressive solid-free liquids. It handles temperatures to 320°F and fluid pressures to 580 psi. Min/max velocity range is 1.64-32.8 fps, providing flow range of 0.3-500 gpm. Axis and paddle wheel are stainless steel. Available in 2-wire, frequency-sinusoidal and 3-wire, frequency-pulse versions, Type 8030HT is compatible with pipe diameters of ½-2 in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Burkert
2602 McGaw Ave.
Irvine, CA, 92614 5840
USA
Burkert Announces Type 8030HT Paddle-Wheel Flow Sensor: Designed for High-Temperature/High-Pressure Applications
IRVINE, CALIF., October 14, 2003 - Burkert introduces the Type 8030HT Paddle-Wheel Flow Sensor, built to meet the high-temperature/high-pressure requirements of markets that include mechanical industry OEM, heating/cooling, injection molding, die-casting, textiles, and water thermoregulation. The unit accommodates neutral and slightly aggressive solid-free liquids.
The Type 8030HT handles medium temperatures up to 320°F and fluid pressures up to 580 psi. The unit's minimum/maximum velocity range is 1.64 f/s to 32.8 f/s. This translates into a flow range of approximately 0.3 gpm to 500 gpm. Accuracy (teach-in) is ±1% fs; accuracy (standard K-factor) is ±(1% fs + 3% of measured value). Linearity is ±0.5% fs, while repeatability is 0.4% of measured value. The unit is compatible with pipe diameters of 1/2- to 2-inches.
The Type 8030HT's axis and paddle-wheel are both constructed of stainless steel, with the non-magnetic paddle-wheel insensitive to ferromagnetic particles. To mount and dismount the unit's sensor head, a simple quarter-turn is all that's required. This eliminates the need to open the pipe and disrupt the running process.
The Type 8030HT is available in two versions: two-wire frequency sinusoidal and three-wire frequency pulse. The unit can be easily connected to standard remote electronic devices such as a PLC plus these Burkert devices:
o Type 8021 (frequency output module)
o Type 8023 (4-20mA output module)
o Type 8025 (wall- or panel-mounted flow transmitter)
o Type 8032 (wall-mounted paddle-wheel flow sensor)
o Type 8034 (wall- or panel-mounted flow indicator)
o Type 8600 (batch controller mounted on a solenoid valve)
o Type 8630/2712 (digital positioning unit mounted on a globe control valve)
For more information on the Type 8030HT Paddle-Wheel Flow Sensor, please contact Ursula Johns, ursula.johns@burkert.com, www.burkert-usa.com.
