Flow Meter suits filling and dosing operations.
May 25, 2004 -
With valve as actuating element, Type 8055 Full-Bore Magflowmeter is rated for continuous or batch control control. Unit incorporates 2 transistor outputs rated 40 Vdc, 100 mA; 0/4-20 mA current output; and RS485. Available in sanitary, low-flow, and general-purpose configurations, product has programmable transistor outputs that can be configured as pure switching or pulse outputs. Features include graphic display and stainless or carbon steel construction.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Burkert
2602 McGaw Ave.
Irvine, CA, 92614 5840
USA

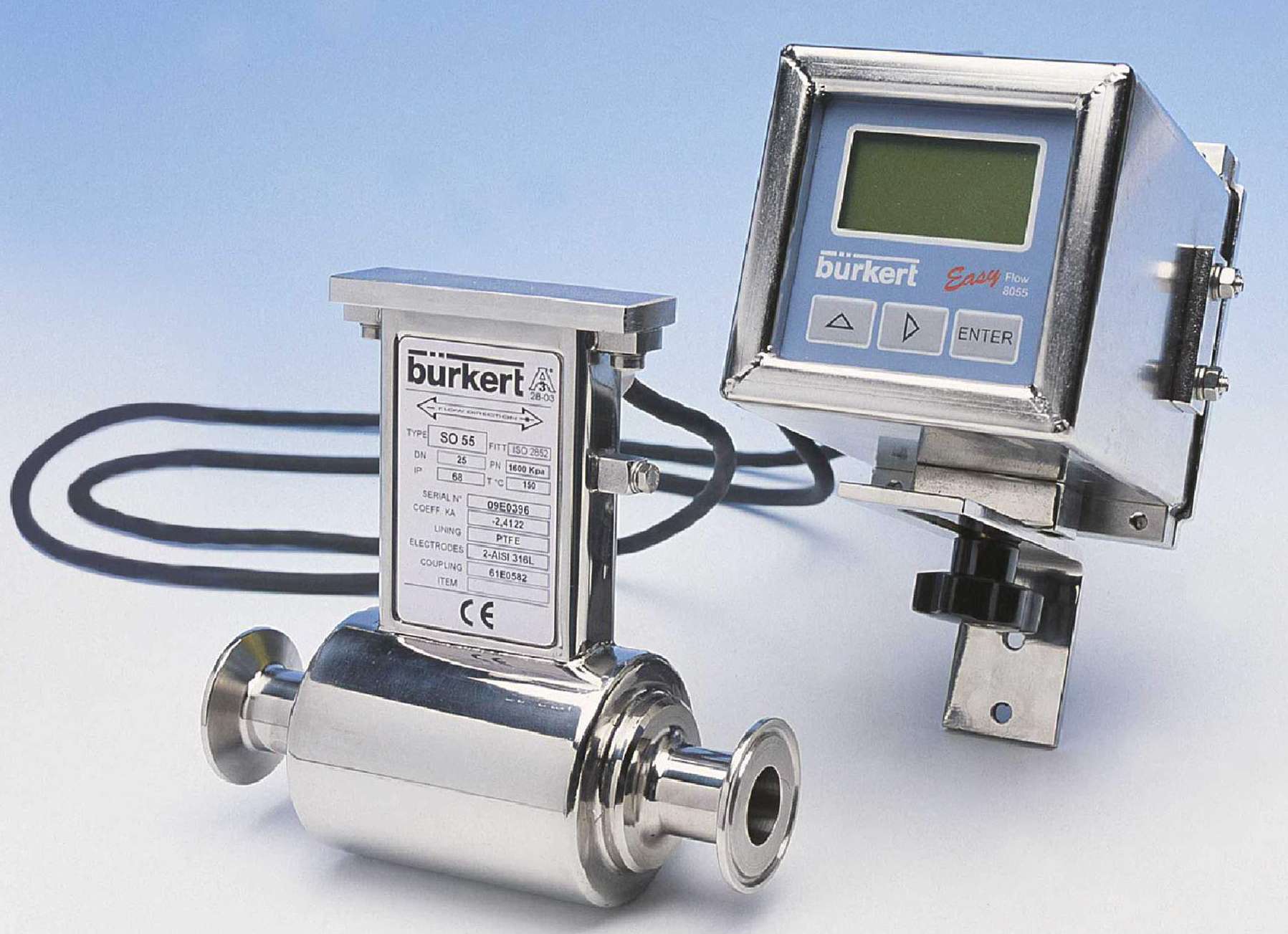

Burkert Introduces Type 8055 Full-Bore Magflowmeter (Continuous or Batch Control)
IRVINE, CALIF., May 18, 2004 - Burkert introduces the Type 8055 Full-Bore Magflowmeter, designed for filling and dosing operations, including data registration. The Type 8055 (continuous or batch control) finds use in sanitary food/beverage processes, pharmaceuticals manufacturing and water treatment applications. It is also used in CIP (clean in place) and SIP (steam in place) applications.
Combined with a valve as the actuating element, the Type 8055 accurately controls precision dosing and filling operations. The unit incorporates two transistor outputs (40VDC, 100mA), 0/4-20mA current output and RS485. The transistor outputs are each freely programmable and can be configured as pure switching outputs for a valve, alarm and rough/fine dosage. In addition, they can be configured proportionately to flow rate/volumes as pulse output (1250 Hz max.). Incorporating a large, easy-to-read graphic display, the Type 8055 is programmed locally via three key pads or by PC.
The Type 8055 is available in sanitary, low-flow and general-purpose configurations. Measuring range for the sanitary version is 8.83 cubic ft/h to 9,888 cubic ft/h; low-flow version is 66 gal/h to 3,302 gal/h; general-purpose version is 636 cubic ft/h to 9,888 cubic ft/h. Accuracy for all versions is 10.2% of reading (for liquid velocity >3.28 ft/s), while repeatability is better than 0.1%. Minimum conductivity is 5 5S/cm.
Fluid temperature range for the Type 8055's sanitary and low-flow versions is -40F to 3020F; for the general-purpose version, 320F to 1400F. Ambient temperature range for all versions is -40F to 1400F. Maximum fluid pressure permitted for all versions is 234 psi.
Type 8055 pipe diameters are 1/2-inch to 3-inches for the sanitary version; 1/2- to 3/4-inch for the low-flow version; 1- to 4-inches for the general-purpose version. Process connections for the sanitary version are Tri-Clamp. per BS4825 or ISO 2852 with others on request; low-flow version is threaded NPT or ISO 228-1 (UNI 338) with others on request; general-purpose are ASME or DIN flanged 2501 (UNI 2223) with others on request.
Both the sanitary and low-flow configurations of the Type 8055 incorporate bodies made of stainless steel 304-1.4301. The general-purpose body is made of varnished carbon steel, while the Type 8055 controller is constructed of varnished carbon steel or stainless steel 304-1.4301. The magflowmeter's wetted parts are made of stainless steel 316L-1.4404. Lining material for the unit's sanitary and low-flow versions is PTFE; for the general-purpose version, PP.
The Type 8055 is compatible with various pumps and PLCs, plus these other Burkert units:
o Type 6223 Proportional Solenoid Control Valve
o Type 2731 TOP Control System
o Type 2700 SIDE Control System
o AirLINE Type 8644 Remote Process Actuation and Control System
For more information on the Burkert Type 8055 Full-Bore Magflowmeter, please contact marketing-usa@burkert.com, www.burkert-usa.com.
