Fixed Frequency Synthesizer operates at 2,030 MHz.
April 8, 2010 -
Suited for fixed wireless and microwave radio applications, Model SFS2030A-LF features typical phase noise of -95 dBc/Hz at 10 kHz offset and typical sideband spurs of -70 dBc. Unit delivers output power of 6 dBm with VCO supply of 5 Vdc while drawing 35 mA, and phase locked loop voltage of 3 Vdc while drawing 9 mA over temperature range of -40 to 85°C. Housed in PLL-V12N package measuring 0.60 x 0.60 x 0.13 in., RoHS-compliant device features typical 2nd harmonic suppression of -20 dBc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Z-Communications, Inc.
9939 Via Pasar
San Diego, CA, 92126
USA

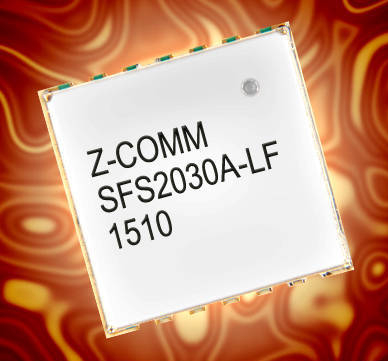

Fixed Frequency Synthesizer: SFS2030A-LF Features Low Phase Noise
Z-Communications, Inc. announces a new RoHS compliant Fixed Frequency Synthesizer model SFS2030A-LF in S-band. The SFS2030A-LF is a single frequency synthesizer that operates at 2030 MHz. This Synthesizer features a typical phase noise of -95 dBc/Hz @ 10 KHz offset and typical sideband spurs of -70 dBc.
The SFS2030A-LF is designed to deliver a typical output power of 6 dBm with a VCO voltage supply of 5 Vdc while drawing 35 mA (typical) and a phase locked loop voltage of 3 Vdc while drawing 9 mA (typical) over the temperature range of -40º to 85º C. This Fixed Frequency Synthesizer features typical 2nd harmonic suppression of -20 dBc and comes in Z-Comm's industry standard PLL-V12N package measuring 0.60 in. x 0.60 in. x 0.13 in. It is available in tape and reel packaging for production requirements. The SFS2030A-LF is also ideal for automated surface mount assembly and reflow.
SFS2030A-LF is well suited for fixed wireless and microwave radio applications that require low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/Product... .
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
Part Number: SFS2030A-LF
Delivery: Stock-6 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support - mailto:applications@zcomm.com
Email Sales: mailto:sales@zcomm.com
URL: http://www.zcomm.com
|
|
|
|
|
|
|
|
|
|
|
