Fixed Frequency Synthesizer offers low phase noise.
October 7, 2008 -
Operating in S-band at 3263.31 MHz, RoHS-compliant SFS3263A-LF features typical phase noise of -95 dBc/Hz @ 10 kHz offset and typical sideband spurs of -70 dBc. It delivers typical output power of 9 dBm with VCO voltage supply of 5 Vdc while drawing 33 mA (typ) over -40 to +85ºC range. Additional characteristics include typical phase locked loop voltage and current of 3 Vdc and 13 mA, respectively, as well as typical 2nd harmonic suppression of -10 dBc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Z-Communications, Inc.
9939 Via Pasar
San Diego, CA, 92126
USA

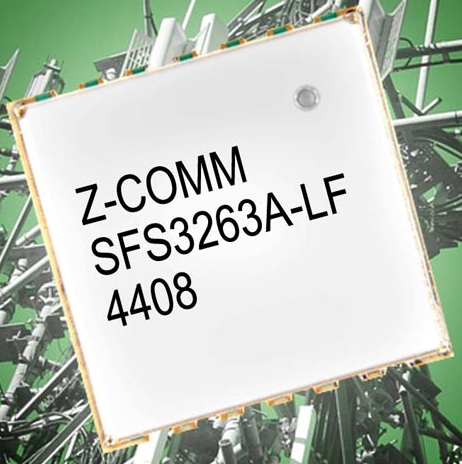

Fixed Frequency Synthesizer: SFS3263A-LF Features Low Phase Noise
SAN DIEGO, October 2, 2008: Z-Communications, Inc. announces a new RoHS compliant Fixed Frequency Synthesizer model SFS3263A-LF in S-band. The SFS3263A-LF is a single frequency synthesizer that operates at 3263.31 MHz. This Synthesizer features a typical phase noise of -95 dBc/Hz @ 10 KHz offset and a typical sideband spurs of -70 dBc.
The SFS3263A-LF is designed to deliver a typical output power of 9 dBm with a VCO voltage supply of 5 Vdc while drawing 33 mA (typical) over the temperature range of -40º to 85º C and phase locked loop typical voltage of 3 Vdc and typical phase locked loop current of 13 mA.. This Fixed Frequency Synthesizer features typical 2nd harmonic suppression of -10 dBc and comes in Z-Comm's industry standard PLL-V12N package with low shield measuring 0.60 in. x 0.60 in. x 0.13 in. It is available in tape and reel packaging for production requirements. The SFS3263A-LF is also ideal for automated surface mount assembly and reflow.
SFS3263A-LF is well suited for fixed wireless applications that require low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/Product....
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
Part Number: SFS3263A-LF
Delivery: Stock-6 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support - mailto:applications@zcomm.com
Email Sales: mailto:sales@zcomm.com
URL: http://www.zcomm.com
|
|
|
|
