Finite Element Software features 3D viewer.
July 15, 2009 -
Offering interactive environment for solid modeling, Geometer Software uses stereo lithography viewer to simultaneously display up to 100 STL files, with automatic adjustment for text or binary format. In addition to perspective view, program features orthogonal projection mode, which supports automatic or user-controlled fiducials and range of zoom and pan commands for close-ups. Individual models can be displayed in solid-surface or wireframe mode.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Field Precision
P.O. Box 13595
Albuquerque, NM, 87192
USA
Field Precision Adds Full-featured 3D Viewer
SUMMARY
Field Precision now includes an easy-to-learn, versatile viewer for STL models in all 3D finite-element software packages.
BODY

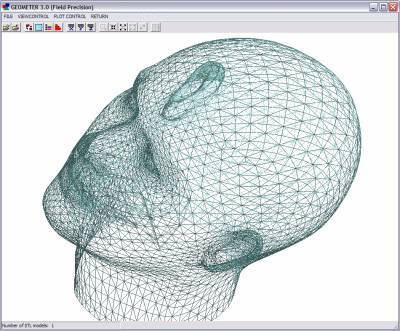

STL (stereo lithography) files are the pathway for importing complex shapes from SolidWorks, ProE and other 3D CAD programs into MetaMesh, the Field Precision conformal mesh generator. Because of the growing importance of shape import, the company has added a powerful STL viewer to Geometer (an interactive environment for solid modeling). The viewer simultaneously display up to 100 STL files, with automatic adjustment for text or binary format. The program uses OpenGL for real-time, interactive graphics. The Geometer viewer has several advantages compared to other available software:
Clean interface with intuitive controls.
In addition to the standard perspective view, the program features a unique orthogonal projection mode. The mode supports automatic or user-controlled fiducials and a full range of zoom and pan commands for closeups.
Accurate coordinate measurements of features in the orthogonal mode.
Human-engineered mouse-based view controls in the perspective mode with context-sensitive cursors.
Individual models may be displayed in solid-surface or wireframe mode.
Automatic calculation of STL file statistics (number of facets, limits of nodes, center-of-mass,...).
Define cut planes for individual models to look inside complex assemblies.
Utilities to transform STL models include 1) scale or change coordinate units,
2) change proportions of an object by scaling along one or two axes, 3) convert a text file to binary format and 4) shift and/or rotate a model in space.
The STL Viewer is the perfect utility for researchers and engineers who want to incorporate sets of 3D CAD objects into finite-element calculations. Field Precision offers a 30-day trial of the Geometer/MetaMesh package with the new STL Viewer.
About Field Precision
Field Precision LLC has created easy-to-use 2D and 3D simulation software for personal computers since 1989. Application areas include electrostatics, permanent magnets, charged-particle devices, microwave equipment, biomedical engineering and X-ray technology. The company is based in Albuquerque, New Mexico. Our educational texts on charged particle physics and technology are in use by over 20,000 students and researchers. For detailed information (customer lists, research projects and publications), please see http://www.fieldp.com/company.html.
