Fan Control IC provides variable speeds.
May 16, 2002 - ZXBM2000 series of ICs controls 2-phase, dc brushless fan and blower motors up to 100W. ZXBM2003 provides frequency generator rotor speed output; ZXBM2002 offers locked rotor error output; and ZXBM2M001 combines both signals on dual function pin. All deliver up to 80 mA to pair of external MOSFET or bipolar transistors connected to fan motor windings. Speed control is implemented via variable external voltage or NTC thermistor input.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Zetex, Inc.
700 Veterans Memorial Highway
Hauppauge, NY, 11788
USA
Fan Motor Control IC Provides Complete Variable Speed Solution
Hauppauge, NY. Integrating rotational speed sensing, locked rotor detection and automatic recovery functions into the ultra small MSOP10 package, the new Zetex ZXBM2000 series of controller ICs offers a complete variable speed control solution for 2-phase, DC brushless fan and blower motors up to 100W.
The controller's two phase drive outputs deliver up to 80mA to a pair of external MOSFET or bipolar transistors connected to the fan motor windings. Speed control is implemented via the application of a variable external voltage or an NTC thermistor input.
To detect fan rotor position, a built-in-Hall amplifier enables Hall sensors to be interfaced to the IC directly and so remove the need for external signal conditioning circuitry. 4-pin 'naked' Hall sensors or 3-pin buffered switching types can be used.

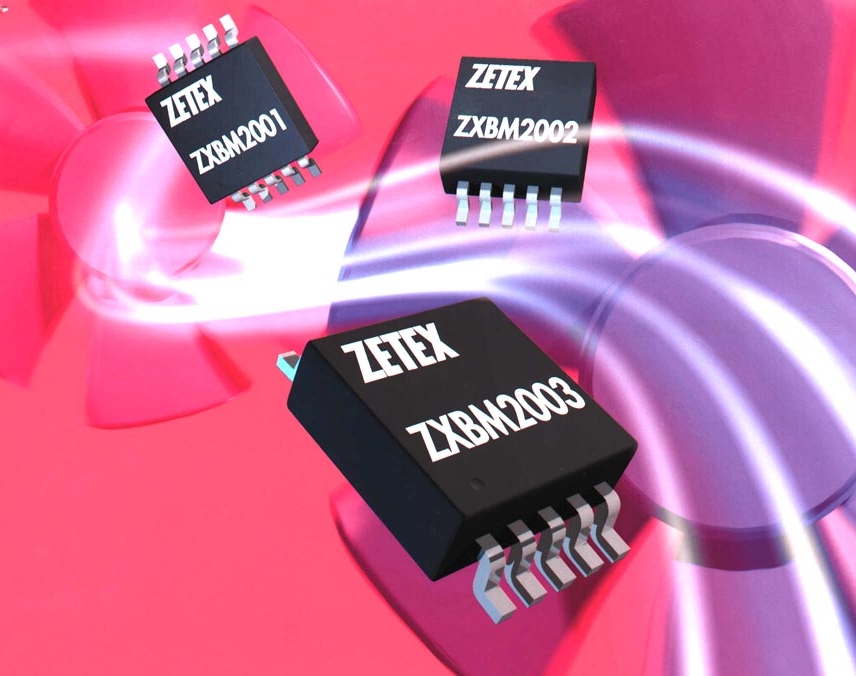

The ZXBM2000 product range comprises three variants offering a choice of diagnostic outputs. The ZXBM2003 provides a frequency generator (rotor speed) output; the ZXBM2002 offers a locked rotor error output; the ZXBM2M00 1 combines both signals on a dual function pin.
When an obstruction in the fan blade or a seized bearing causes a locked rotor condition, the phase drive outputs go into a safe drive mode to protect the transistor pair and motor windings. The time spent in the mode is determined by an external timing capacitor or by a clearance of the fault.
The ZXBM2000 series will serve a wide range of mainframe, PC, instrumentation and climate control applications. These devices are complemented by the complete range of Zetex discrete MOSFET and bipolar transistors, provided in the latest space-saving packages.
The 1,000 piece price is $0.60 each. Delivery is quoted at 4-6 weeks in production volumes.
