Event Counter monitors system usage.
August 19, 2002 - With non-volatile memory, solid state Model DDS101 has event range of 99,999 events. Its output is serial binary coded decimal format. All connections are made via printed wiring board and output brought to data collection point or to single dedicated connector. Operating temperature range is -65 to +125°C. Unit has life accuracy of ±0.1%, operating voltage range of 4.5 to 10 Vdc, and ripple voltage of 2V peak ripple between 10 Hz and 10 kHz superimposed on 7.0 Vdc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
L-3 Communications, Electrodynamics, Inc.
1200 Hicks Rd.
Rolling Meadows, IL, 60008
USA

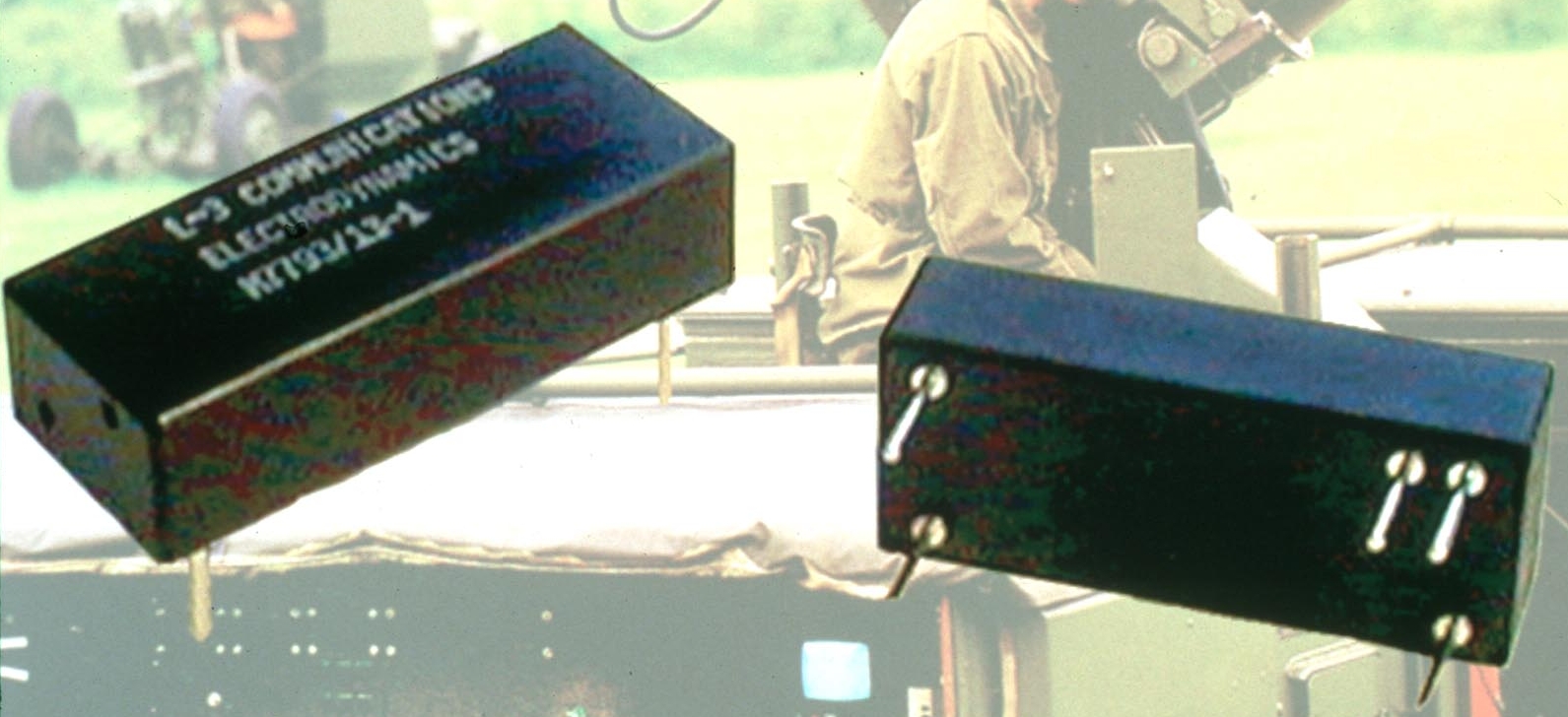

Solid State, PC Board Mount Event Counter Monitors Your System Usage
ROLLING MEADOWS, ILLINOIS, USA. L-3 Communications, Electrodynamics, Inc. announces the introduction of the DDS101 solid state Event Counter that has been developed to meet the most difficult requirements of many military and aerospace applications. The DDS101 features non-volatile memory and meets all of the requirements of MIL-M-7793/13. It provides a highly reliable means of monitoring systems' event activity. All connections are made via printed wiring board and the output brought to a data collection point for system reading or to a single dedicated connector. Events are read from the DDS101 counter by mating the printed wiring board connections with the M7793/12-1 reader's connector and operating the reader.
Event range is 99,999 events. The output is serial binary coded decimal format. The package measures 1.1" long x .450" wide x .275" high. Weight is less than 0.2 ounces.
Environmental Specifications include operating temperature range of -65 to +125°C meets shock testing per MIL-STD-202, Method 213, Cond. I; Vibration per MIL-STD-202, Method 204, Cond. D; and life accuracy of ± 0.1% from -65 to +125°C and 4.5 to 10 VDC.
DDS101 meters meet or exceed applicable requirements of MIL-M-7793/13. Operating Voltage Range is 4.5 to 10 VDC. Ripple Voltage is 2 volt peak (4 volt peak-to-peak) ripple between 10 Hz and 10 kHz superimposed on 7.0 VDC. Output impedance is ± 10%. Logic zero is between 0.0 and +0.2 volts. Logic one is between +3.3 and +6.6 volts. Power consumption is 2 milliwatts, max. Transient protection test subjects the DDS100 to ±25 volt transients of 10 microsecond duration occurring at a 1 millisecond repetition rate.
The DDS101 costs $125.00 or less depending on volume. Delivery time is 4-6 weeks after receipt of order.
For detailed information, including specifications, dimensions and ordering, please call, fax, or write L-3 COMMUNICATIONS/ELECTRODYNAMICS, Inc., 1200 Hicks Road, Rolling Meadows, IL. 60008. Telephone (847) 259-0740. Fax (847) 255-3827. Email is info@edi.L-3com.com. Visit our web site at www.edi.L-3com.com.
About L-3 Communications/Electrodynamics. Inc.:
Electrodynamics, Inc. division of L-3 Communications, produces and markets nonvolatile status indictors comprising of latching electromagnetic Ball & Flag indicators for system maintenance, Solid state LED indicators for system information, highly reliable DYNATIME® Elapsed Time indicators and Event counters. Electrodynamics products are used in industrial, commercial, transportation and military applications. Electrodynamics, Inc. is located the Chicago suburb of Rolling Meadows, Illinois.
|
|
|
|
|
|
|
|
