Ethernet Switch is waterproof/dust tight and surge protected.
April 15, 2009 -
With transmission distance of greater than/equal to 300 m, outdoor ethernet switch has power consumption of 6 W, operating voltage between 40-90 V for DC/AC, and maximal passing current of 1 A. Measuring 228.6 x 71.2 x 100.0 mm, unit has operating temperature of -40 to +85°C. Featuring coaxial cable, speed of 10/100 Mpbs for full duplexer, forward/backward and remote powering, unit meets IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standards. Aerial, pedestal, or wall mounting is available.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Cable Vision Electronics Co., Ltd
12F-3, No.16, Chien Pa Rd
Chung Ho, , 23511
Taiwan

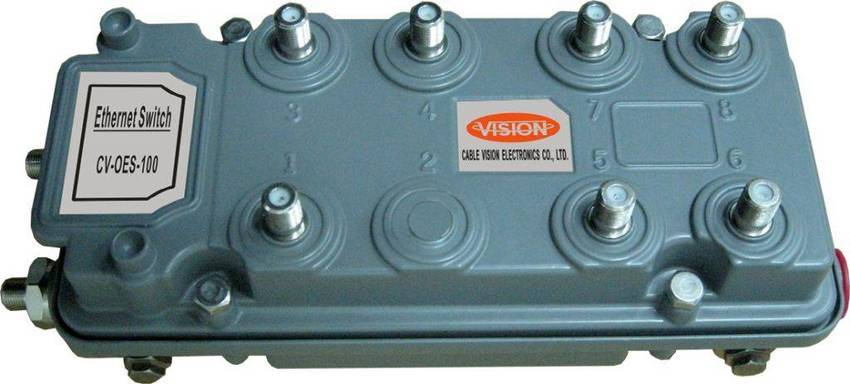

Outdoor Ethernet Switch
March, 27, 2009
Cable Vision is having its latest innovative of Ethernet switch for outdoor "Ethernet over Coax" solution. By using the unique "Ethernet over Coax" (EOC) technique, this switch can provide transmission distance much longer than original Ethernet limitation through coax cable. AC or DC power can also accompany with Ethernet signal. To apply in the outdoor environment, the enclosure has a compact, water-proof, dust-tight and surge protection designs. This outdoor Ethernet switch with advanced feature is very suitable to outdoor Ethernet networks.
Feature:
o Waterproof, dust-tight, anti-vibration connection and surge protection
o Long transmission distance (>=300m)
o Remote or local AC/DC powering
o Operating temperature -40 to +85 degree C
o VLAN, QOS, SNMP and web management
o Aerial, pedestal or wall mounting available
Specification:
Interface
Connector: F female connector
Cable: Coaxial cable
Port number: 7 ports for data 10/100Mpbs Tx/Rx Electrical
Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Speed: 10/100Mbps for full duplexer
Transmission distance: >=300m 5c or RG-60 coaxial cable
Remote powering: YES
Forward/Backward powering: Selectable Local powering: Available Powering & Data
Cascading ability: YES
Power consumption: 6W
Voltage: 40~90 V for DC/AC
Maximal passing current: 1 A
Management
Interface: Web browser / SNMP
QOS: Policy based 4-level queues per port WRR/WFQ/SP IGMP snooping V1/V2: YES
VLAN: Port based/ Tag based
Priority classification: Port based/ VLAN/TOS/DSCP/MAC address
VID/ TCP/UDP port number
Rate control: YES
Security: YES
Mechanical
Enclosure material: Aluminum alloy
Mounting: Aerial, pedestal or wall mounting available
Dimension: 228.6 mm (H) x 71.2 mm(W) x 100.0 mm (D) (connector not including)
Operating temperature -40 to +85 degree C
