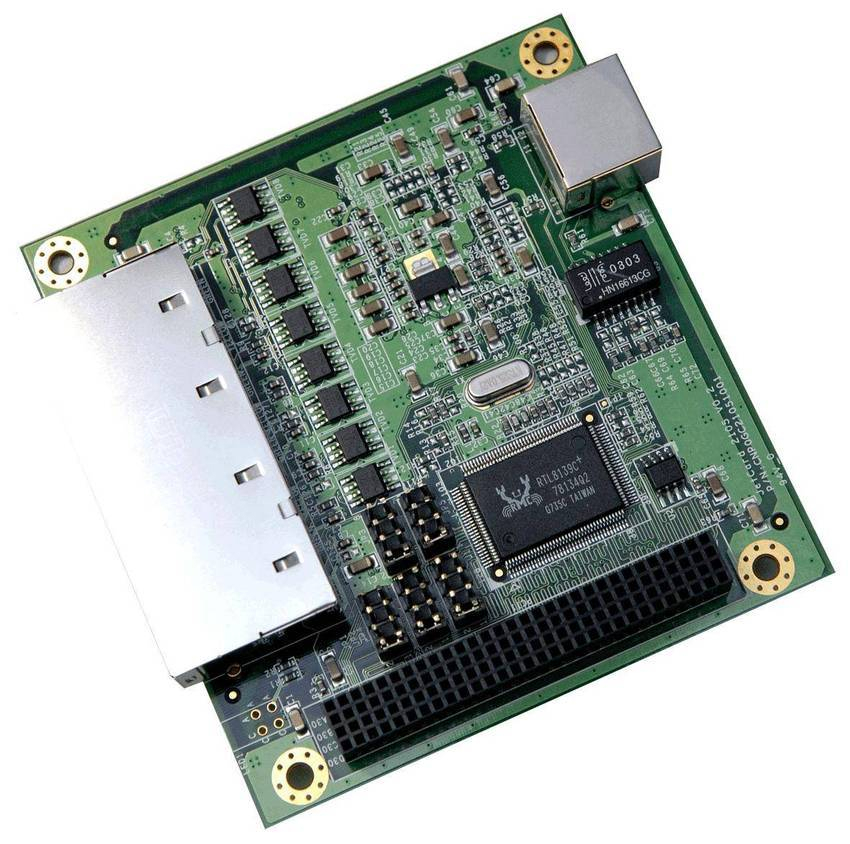

Ethernet Switch Card has 5-port, PCI-104 design.
December 1, 2008 -
JetCard 2105 provides 5 Ethernet ports, each of which offers IEEE 802.3 10 Base-T and 100 Base-Tx compliant Ethernet data transmission with auto MDI/MDI-X and auto-negotiation. Unit features 1.5 kV Hi-pot isolation protection, and overload current/voltage protection, as well as PCI-104 bus that supports +3.3 and +5 V slots. JetCard supports back-pressure and pause frame-based flow control schemes to ensure zero packet loss under temporary traffic congestion.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
KORENIX Technologies
11F-1 No. 108 Min Chuan Road
Taipei, , 231
Taiwan
Korenix Launches New PCI-104 Card JetCard 2105
Taipei, Taiwan, Nov. The JetCard 2105 is a flexible and high performance five-port Ethernet switch card in PCI-104 format. The PCI-104 bus of JetCard 2105 supports both +3.3V and +5V slot. The easy-to-install drivers that come with JetCard make it easier for you to set up your complex system. And with its 1.5KV Hi-pot isolation protection, and overload current/voltage protection, JetCard 2105 is ideal for industrial applications in severe environments and is your best choice for embedded networking solution.
The JetCard 2105 uses Marvell 88E6065 chip to provide 5 Ethernet ports. Each Ethernet port in the JetCard offers IEEE 802.3 10 Base-T and 100 Base-Tx compliant Ethernet data transmission with auto MDI/MDI-X and auto- negotiation.
Auto MDI/MDI-X: The JetCard automatically determine whether or not it needs to interchange cable sense between pairs so that an external crossover cable is not required. If the JetCard interoperate with a device that cannot automatically correct for crossover, the JetCard makes the necessary adjustment prior to commencing Auto-Negotiation.
Flow control: The JetCard supports back-pressure and pause frame-based flow control schemes to ensure zero packet loss under temporary traffic congestion.
QoS (Quality of Service): QoS for networks is an industry-wide set of standards and mechanisms for ensuring high-quality performance for critical applications. JetCard provides the shared memory-based QoS switch architecture. Packets are directed into one of four traffic class queues based upon Port, IEEE 802.1p, IPv4fs TOS or Diff-Serv, or IPv6fs Traffic Class.
VLAN: The JetCard supports IEEE802.1Q tag VLAN and also can be enabled on a per-port basis VLAN.
Ethernet Statistics monitoring: The JetCard has a set of thirty, 32-bit counters to provide a set of Ethernet statistics for frames received on ingress and transmitted on egress. A register interface allows the JetCard to capture, read, or clear the counter values.
Customized Configurations: The JetCard supports an add-on EEPROM for programming its internal registers. The EEPROM data will be read in once after JetCard is reset.
The PCI-104 form factor supports the PCI bus. The maximum configuration for the PCI bus of PC/104-Plus modules is four plus the Host Board.
About Korenix Technology
Korenix Technology is committed in design and manufacturing industrial communications products, which can be used in various markets that requires high stability or for industrial field environments, such as POS, banking, telecom, transportation, industrial automation, energy, power, military, and medical fields.
Korenix has 8 major product lines: JetRock Series IP67/68 Industrial Ethernet Switch, JetNet Series Industrial Managed and Unmanaged Redundant Ethernet Rail Switch, JetPoE Switch Series include PoE managed and unmanaged switch, JetBox series communication computer, JetPort Series RS-232/422/485 3-in-1 Device Server, JetI/O Ethernet-based block I/O modules, JetCon Series Industrial Serial/Ethernet/Fiber Media Converter and JetCard Series Multiport Serial Card. Korenix is committed to provide quality products to our customers. Various safety approvals, such as EMI, EMC, EMS, UL, cUL, are applied to all Korenix products. All Korenix products have 5 years global warranty through worldwide service centers.
For customersf specific application requirements, Korenix also provide tailor-made services. Korenix listens to customersf voices, designs professional products, and provides comprehensive services to make Korenix a reliable partner for global users.
