Emergency Cable-Pull Switch spans lengths of up to 75 m.
April 13, 2010 -
Model ZS80 provides continuous emergency stop control along exposed areas of machinery and conveyors that are hazards to machine operators/maintenance personnel. Its double-break contact blocks offer choice of arrangements for contacts, which change state when cable is pulled or goes slack. Featuring rugged, metal housing and watertight design, unit includes E-Stop pushbutton, position indicator to ease installation, lever-actuated reset, and 3 cable entries.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Schmersal Inc.
660 White Plains Rd., Suite 160
Tarrytown, NY, 10591
USA

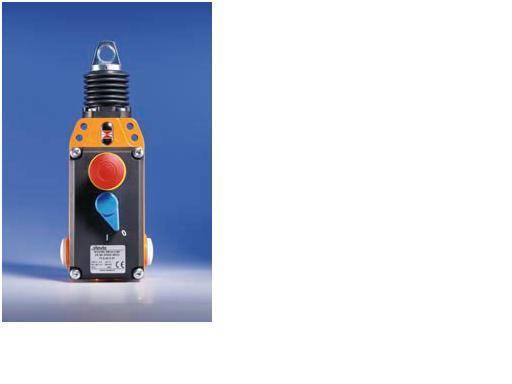

New! ZS80 Emergency Cable-Pull Switch Capable of Spanning Lengths of up to 75 Meters
The ZS80 is designed to provide continuous emergency stop control along exposed areas of machinery and conveyors which present hazards tom operator/maintenance personnel. Unlike E-Stop pushbuttons, emergency cable-pull systems can be actuated at any point along the "trip wire". The unit features a double-break contact blocks offering a choice of two positive-opening NC contacts and two NO contacts, three positive-opening NC contacts and one NO contact, or four positive- opening NC contacts ... which change state when the cable is pulled or goes slack.
Thus the switch can be actuated if an operator falls into, is pulled into, or leans on the trip wire. In addition the unit features an integrated E-Stop pushbutton, a position indicator for easier installation, a lever-actuated reset, three cable entries, and an optional signaling lamp. The unit is capable of spanning lengths of up to 75 meters. Its rugged, metal housing and watertight design (IP 67) make them ideal in hostile environments. The units meet EN 418, IEC/EN 60947-5-1, and IEC/EN 60947-5-5, with UL and CSA pending.
|
|
|
|
|
|
|
|
