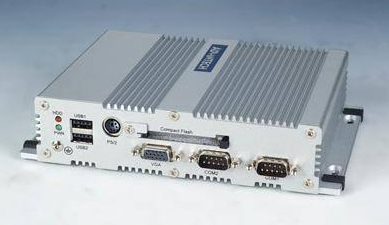

Embedded PC features compact, fanless aluminum case.
September 11, 2009 -
Compact ARK-1310 Embedded Box IPC includes 2 x USB 2.0 ports, 2 x LAN ports, and 4 x COM ports supporting RS232/422/485 with auto-flow control. At 7.44 x 5.14 x 1.61 in., it integrates Advantech EVA-X4150 processor and solid-state CF card up to 8 Gb. Rugged case protects against EMI, shock/vibration, heat, and cold and provides passive cooling. Operating in -20 to +65°C temperatures, unit supports input voltages from 9-24 Vdc and operates standalone or embedded into larger housing.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Advantech Automation Corp.
1320 Kemper Meadow Dr., Suite 500
Cincinnati, OH, 45240
USA
Advantech ARK-1310 - Cost-Effective, Entry-Level Box IPC
Advantech, the leading global ePlatform services provider, is pleased to announce the ARK-1310 Embedded Box IPC-a cost-effective, entry-level system platform. All electronics are sealed in a compact, fanless, aluminum case that can be easily embedded in a larger housing or mounted as a separate, stand-alone platform. Its small but tough footprint makes it well-suited to harsh environments and also for automation control applications.
The ARK-1310 offers 2 x USB 2.0 ports, 2 x LAN ports, and 4 x COM ports, all powered by an Advantech EVA-X4150 processor, and packed into a small, rugged unit. All four COM ports support RS232/422/485 with auto-flow control. This compact embedded computer is equipped with a solid state onboard CF card up to 8 GB, so it easily passes 50 and 5 Grms shock and vibration tests. For supply power, it supports a wide range of input voltages, from 9 VDC to 24 VDC.
The ARK-1300 can serve standalone, wall-mounted, DIN-rail or VESA mounted, and the rugged cast aluminum case not only provides great protection from EMI, shock/vibration, heat and cold, but also provides passive cooling for quiet, fanless operation. Reduced power consumption makes this a cool running IPC.
Compact Size
In accord with the rest of the Advantech ARK-1300 series, the ARK-1310 is only 189 x 130.6 mm, and 41 mm high (7.44" x 5.14" x 1.61"), which puts its height within 1U limits. It is at home in space-limited environments such as kiosks or IO control systems.
Rich IOs
There are 4 x RS-232/422/485 ports with auto-flow control, 2 x USBs, 2 x LANs and 8-bit, programmable digital IO. And with the wide range of acceptable input voltages, it is quite suitable for general embedded control applications.
Cost Efficient
ARK-1310 has a single board architecture, with a low power embedded Advantech EVA-X4150 SOC. Low initial cost, low power requirements, reduced operating cost, and long service life make this model a low-cost leader.
The ARK-1310 is ideal for kiosks, gateway controllers, product line automation, IO control systems, data collection and transition, and general automation controllers-ideal anywhere a basic, rock solid, fanless embedded system is required.
Note: ARK-1310 operates with Windows CE 5.0, Linux, or DOS, and without hard drive. Not suitable for XP or XPe.
Now taking orders.
Features:
Cost effective, entry-level solution
Built-in x86 SoC up to 150 MHz
Onboard 64 MB Memory (128 MB optional)
Supports VGA (LVDS optional)
4 x RS-232/422/485 ports with auto-flow
2 x 10/100 Mbps LAN and 2 x USB 2.0
1 x CF socket
Fanless
-20 ~ 65° C operating temperature
For more information about the ARK-1310, or other Box IPCs, please visit www.advantech.com/ePlatform/box-ipc.
|
|
|
|
|
|
|
|
