Electromechanical Relay Matrix exhibits low thermal EMF.
September 10, 2009 -

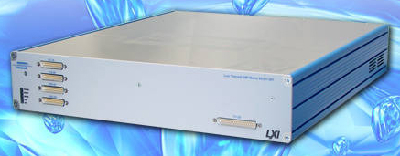

Implemented in 2U rack-mountable enclosure, Model 60-511 suits applications requiring low thermal EMF errors for data acquisition and low voltage measurements. This 56 x 33 electromechanical relay matrix has thermal EMF of less than 1.5 µV (typ), and user connections are provided by commercially available 25- and 37-way D Type connectors that are fully supported by Pickering Interfaces' cable and connector accessories.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Pickering Interfaces
12 Alfred Street - Suite 300-3
Wobum, MA, 01801
USA
Pickering Interfaces launches new 60-511 Low Thermal EMF 56x33 EMR (Electromechanical Relay) Matrix
Clacton on Sea, UK, September 2009 -Pickering Interfaces is expanding its range of customer focused LXI switch matrices with the introduction of the 60-511 Low Thermal EMF 56x33 EMR (Electromechanical Relay) Matrix.
The 60-511 provides a compact solution for applications requiring low thermal EMF errors for data acquisition and low voltage measurements. Careful attention to the design of the 60-511 has led to a thermal EMF of typically less than 1.5µV. The 60-511 is implemented in a compact 2U rack mountable enclosure.
The 60-511 user connections are provided by commercially available 25 way and 37 way D Type connectors which are fully supported by the range of Pickering Interfaces cable and connector accessories, further simplifying customer integration requirements. The 60-511 is pin compatible with the Pickering Interfaces 60-510 low thermal EMF reed relay matrix.
The 60-511 has several advantages over the established 60-510, offering improved low thermal EMF performance & higher switching capacity at a significantly lower price.
Pricing and availability information is supplied on our web site www.pickeringtest.com
Sales Contact for the US :
bob.stasonis@pickeringtest.com
Tel. +1 781-897-1710
About Pickering Interfaces
Pickering Interfaces is a market innovator in signal switching and conditioning for a broad range of applications and architectures, with the largest range of switching modules in the industry for PXI, LXI, PCI, VXI and GPIB applications. Pickering Interfaces has provided solutions for both commercial and military applications. In addition, Pickering's range of instrumentation provides innovative test solutions to users and integrators of modular test systems. Pickering Interfaces operate globally with direct operations in the US, UK, Germany, Sweden, France , Czech Republic, and Engineering support in China, together with additional representation in countries throughout the Americas, Europe and Asia.
|
|
|
|
|
|
|
|
|
|
|
