Electrical Enclosures are built for hazardous locations.
March 30, 2012 -

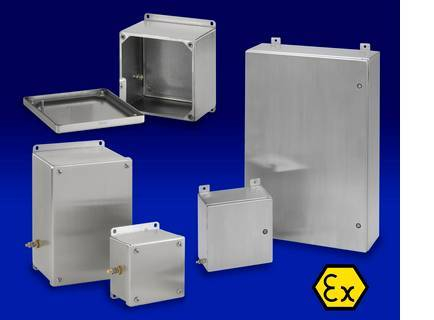

Type 316 stainless steel ZONEX(TM) enclosures are designed for use in applications where increased safety protection (Ex e) as defined by the ATEX Directive 94/9/EC, is acceptable to safely house electrical components in Zone 1 and Zone 2 rated areas. Hinged covered versions are available in 16 standard sizes and come with NEMA-style mounting feet on the top and bottom. Screw cover versions are available in 5 sizes and feature welded-on, full-width top and bottom wall-mount brackets.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
2100 Hoffman Way
Anoka, MN, 55303 1778
Hoffman(TM) Offers Expanded Line of ZONEX(TM) Enclosures for Hazardous Locations
Anoka, MN-March 21, 2012-Pentair Technical Products announces a fully featured, expanded line of Hoffman(TM) brand ZONEX(TM) IECEX- and ATEX-Certified* Enclosures. ZONEX hinge-cover and screw-cover enclosures are designed for use in applications where "increased safety" protection (Ex e), as defined by the ATEX Directive 94/9/EC, is acceptable to safely house electrical components in Zone 1 and Zone 2 rated areas. These enclosures are not intended for use in explosion-proof or flame-proof (Ex d) applications.
The expansion of the Type 316 stainless steel ZONEX platform includes new inch-based offerings in an extended range of sizes, including hinge and screw cover versions. All ZONEX models are now offered with enhanced customization options including: material changes, size changes, paint options, holes and cutouts, population of any ATEX-certified terminal block, stopping plug or drain, mounting bracket changes and other modifications. Hinge cover models are ATEX, IECEX, and AEx certified. Screw cover models are ATEX and IECEX certified.
New inch-dimensioned hinge cover enclosures are available in sixteen standard sizes from 12" x 12" x 6" to 36" x 24" x 8" and come standard with NEMA-style mounting feet on the top and bottom, a full size bottom gland plate and a one-piece continuous gasket on the door and gland plate. Hinge cover models feature a 10-mm brass internal/external bonding provision, a quarter-turn latch with a 3-mm double bit insert and the required panel and bonding hardware. Side mount brackets, a high-temperature silicon gasket, gland plate changes from zero to four and enclosure dimension changes up to 60" x 36" x 18" are available upon request.
Screw cover enclosures are available in five sizes ranging from 4" x 4" x 3" to 10" x 10" x 5". These enclosures feature welded-on, full-width top and bottom wall-mount brackets, a 6-mm internal/external brass bonding provision, stainless steel cover screws, a one-piece continuous gasket and required panel and bonding hardware. A high-temperature silicon gasket is available upon request.
"The ZONEX enclosure family now features European ATEX and global IECEX certifications on all products, as well as American AEXe certification on the hinge cover products," said Greg Quick, Hoffman Product Manager. "We have expanded the ZONEX Enclosures line to include small screw covers and inch dimensions, as well as expanded and enhanced modification and population capabilities, to better meet the needs of the marketplace for enhanced capabilities with short lead-times and the required certification."
Applications. ZONEX Enclosures deliver a robust solution for terminal and junction enclosure applications in potentially hazardous locations, including:
o Petroleum and chemical processing
o Water treatment processing
o Pharmaceutical processing
o Grain processing
Features and benefits of the ZONEX Enclosure family make it simple to specify for diverse application requirements:
o ATEX, IECEX and AEx certifications
o Expanded modifications and customization to fit specific application requirements
o Material change options: Type 304 stainless steel, aluminum and painted mild steel
o Vertical and horizontal mounting bracket options
o Zero to four gland plates to facilitate easy cable gland entry
o 3-mm double-bit insert for enhanced security
o Expanded certified component installation flexibility
o Industry-leading availability in standard or modified product
*For more information about ATEX-certification visit http://ec.europa.eu/enterprise/sectors/mechanical/atex/index_en.htm
