Electric Power Feedthru Connector System is for submersible pumps.
November 10, 2009 -

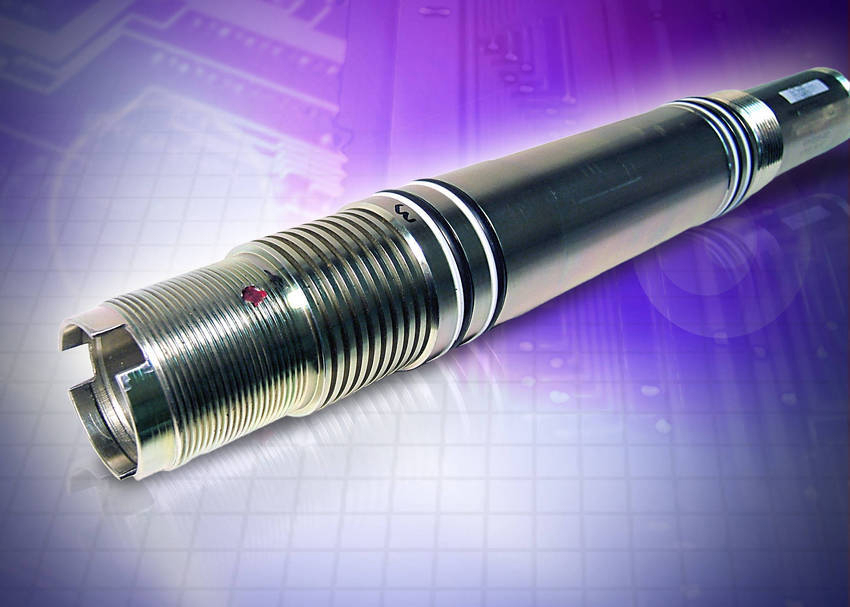

Electric power feedthru system is designed for operation with conductor temperatures up to 450°F. Engagement system between high temperature feedthru and the mating surface connector includes Metal-Lok(TM) keying system, which prevents rotation of surface connector should it be inadvertently turned or mishandled. CSA-approved for use in Class I, Division 1 hazardous locations, connector system is rated to 5,000 Vac for up to 140 A and features a pressure rating of 3,000 psig.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
ITT Interconnect Solutions
666 East Dyer Road
Santa Ana, CA, 92705
USA
ITT Develops High Temperature Electric Power Feedthru Connector System for Submersible Pumps
Feedthru connector system is CSA-approved, withstands temperatures to 450°F...
SANTA ANA, CA - November 4, 2009 - ITT Interconnect Solutions, a leading global manufacturer and supplier of connectors, interconnects, and cable assemblies, has developed a new high-temperature electric power feedthru system for submersible pumps. ITT ICS' BIW specifically designed the connector feedthru system for operation with conductor temperatures up to 450°F (230°C). The engagement system between the high temperature feedthru and the mating surface connector includes a new Metal-Lok(TM) patented keying system, which prevents rotation of the surface connector should it be inadvertently turned or mishandled.
"Such severe operating environments place significant demands on the individual components themselves and stress sealing elements of the system, so we addressed these issues by re-engineering the power feedthru, incorporating an innovative proprietary keying system," said Keith Teichmann, director of marketing for ITT Interconnect Solutions. "In addition, seals between individual parts of the BIW high temperature feedthru connector are protected by a new sealing system which can withstand extremely high temperatures, preventing the ingress of downhole fluids, while exterior seals to the hanger and top flange have been fitted with high-temperature O-rings and back-up rings."
ITT Interconnect Solutions' BIW modified the exterior surface of the connector for improved heat transfer and better cooling properties, and internal insulators are manufactured from high temperature PEEK® materials. The high temperature feedthru connector system is CSA-approved for use in Class I, Division 1 hazardous locations. The connector system is rated to 5,000VAC for up to 140A and features a pressure rating of 3000psig.
About ITT Interconnect Solutions
ITT Interconnect Solutions is an international manufacturer and supplier of connectors including circular, rectangular, fiber optic, RF, power and high voltage, audio, PCMCIA, Compact Flash Card, enclosures, cable assemblies, and application specific custom solutions. The Interconnect Solutions portfolio includes the brands Cannon, VEAM, and BIW. For more information on ITT Interconnect Solutions and an archive of its press releases, please visit http://www.ittcannon.com.
About ITT
ITT Corporation is a high-technology engineering and manufacturing company operating on all seven continents in three vital markets: water and fluids management, global defense and security, and motion and flow control. With a heritage of innovation, ITT partners with its customers to deliver extraordinary solutions that create more livable environments, provide protection and safety and connect our world. Headquartered in White Plains, N.Y., the company generated 2008 sales of $11.7 billion. www.itt.com.
