Ejector Pins suit molding with high glass content resins.
December 20, 2006 -
Hardened-through to Rc 60-63 with annealed heads, Regal TT Type Thru-Tuff(TM) M-2 High Speed Steel Ejector Pins are available in inch-fractional sizes and oversize diameters in straight and shoulder styles. Units are hot forged and stress relieved for uniform grain flow. They are precision ground to 4-10 rms surface finish and .0003 in. tolerance. Sizes range from 1/32-3/8 in. in 6, 8, and 10 in. lengths as well as +.0005, .001, .002, and .005 in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Regal Components, Inc.
4733 122nd Ave. N.
Clearwater, FL, 33762
USA

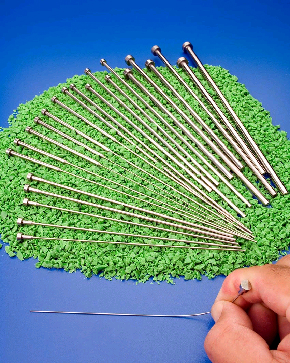

Hardened Ejector Pins for High Glass Content Resins
A full line of hardened-throughout ejector pins that are highly flexible but spring back, and are available from stock in inch-fractional sizes and oversize diameters in straight- and shoulder styles is being introduced by Regal Components, Inc. of Clearwater, Florida.
Regal TT Type Thru-Tuff(TM) M-2 High Speed Steel Ejector Pins are hardened-through to Rc 60-63 with the heads annealed for maximum toughness and easy machining. Featuring popular inch-fractional sizes, plus oversize diameters from stock, these highly flexible ejector pins are ideally suited for molding with high glass content resins.
Hot forged and stress relieved for uniform grain flow and high tensile strength, Regal TT Type Thru-Tuff(TM) M-2 High Speed Steel Ejector Pins are precision ground to a 4-10 RMS surface finish and .0003" tolerance. Sizes range from 1/32" to 3/8" in 6", 8" and 10" L (straight and shoulder styles 1/2" to 4") in fractional dias. as well as +.0005", .001", .002", and .005".
Regal TT Type Thru-Tuff(TM) M-2 High Speed Steel Ejector Pins are priced from $2.41 to $7.12 each. Special orders for any .001" increment can also be provided. Literature and pricing are available upon request.
For more information contact:
Regal Components, Inc.
Fred Coelho, Marketing
4733 122nd Ave. N., Suite E.
Clearwater, FL 33762
(800) 760-5715 FAX (727) 499-7109
e-mail: fcoelho@regalcomps.com
www.regalcomps.com
|
|
|
|
|
|
|
|
