Dual-Wire Brushless DC Blower has compact design.
January 20, 2005 - DC blower incorporates embedded drive and commutation electronics in brushless design, providing 2-wire input. Impeller and rotor are balanced to provide vibration-free, low-noise operation. With 2.9 in. dia and 2.8 in. long design, 12 V unit produces 10 in. of H2O pressure and has max flow rate of 18 cfm. Windings for other voltages are available upon request. Product suits applications where noise and longevity are issues.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Servo Magnetics, Inc.
6660 Variel Ave.
Canoga Park, CA, 91303
USA

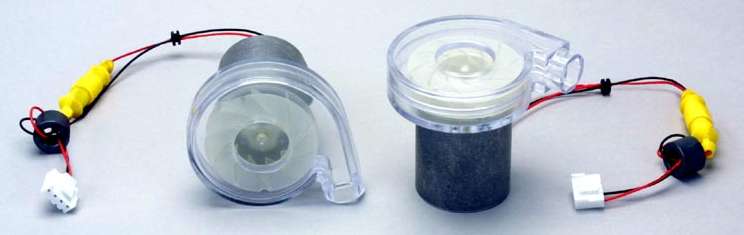

New 12 Volt, Two Wire Brushless DC Blower
Servo Magnetics Inc. - Canoga Park, CA; A new compact high-speed 12 volt brushless DC blower is now available. Drive and commutation electronics are embedded in the brushless motor design thereby providing a two-wire input. The impeller and rotor are balanced to provide a vibration-free, low noise design. This compact 2.9” diameter by 2.8” long design can produce 10 inches of H2O pressure (24.9 mBar) and is capable of producing a flow rate of 18 CFM (8.2 L/Sec). This design provides a space-efficient, cost effective choice where noise and longevity are issues. Windings for other voltages are available upon request. Web site: www.servomag.com
Servo Magnetics Inc.
6660 Variel Avenue
Canoga Park, CA 91303
Phone: 818-346-3113 or Toll Free: 800-457-3786
|
|
|
|
|
|
|
|
