Dual-Input Power Module targets AdvancedTCA applications.
February 9, 2011 -

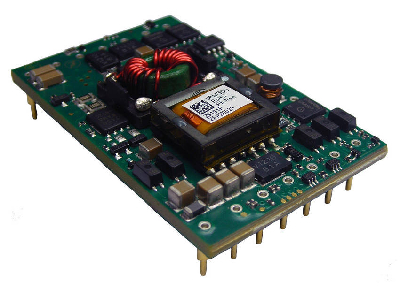

Providing quarter-brick solution to implementing dual-redundant, hot-swap, -48 V inputs with EMI filtering, 300 W Model IPM300 includes ORing, inrush control and protection, and power management functionality. Unit features input voltage range of -36 to -75 Vdc and provides 3.3 and 5.0 Vdc isolated management power. Auxiliary boost supply, programmable from 50-95 Vdc, charges external hold-up capacitors. Housed in 2.3 x 1.45 x 0.58 in. package, RoHS-compliant module operates from -40 to +85°C.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Emerson Electric Co.
8000 W. Florissant Ave., P.O. Box 4100
St. Louis, MO, 63136 8506
Emerson Network Power Launches IPM300 Compact and Rugged Dual-Input Power Module for AdvancedTCA Applications
Carlsbad, Calif. - Emerson Network Power, a business of Emerson (NYSE: EMR) and the global leader in enabling Business-Critical Continuity(tm), today launched the IPM300, a 300 W dual-input power module for AdvancedTCA(r) (ATCA(r)) boards. The IPM300 provides board designers with a rugged quarter-brick solution to implementing dual-redundant, hot-swap -48 V inputs with EMI filtering. The new module also includes ORing, inrush control and protection, and power management functionality. When combined with a variety of Emerson Network Power standard dc-dc converters, the IPM300 provides a comprehensive power solution for a wide variety of ATCA, telecom, and server and storage applications.
The Emerson Network Power IPM300 features an input voltage range of -36 V to -75 Vdc, suitable for both -48 Vdc and -60 Vdc power distribution. The module provides 3.3 Vdc and 5.0 Vdc isolated management power for housekeeping functions. In addition to providing the power management features required by PICMG(r) 3.0 specifications, the IPM300 has an auxiliary boost supply for charging external hold-up capacitors that is programmable from 50 Vdc to 95 Vdc. This enables designers to significantly reduce the external capacitance required to meet hold-up time in case of power feed loss, thereby saving valuable space and cost. A built-in I2C serial bus interface can be used for monitoring and reporting and features programmable alarm thresholds.
At 2.3 in x 1.45 in x 0.58 in (58.4 mm x 36.8 mm x 14.7 mm), the IPM300 features one of the smallest form factors available today. It has an estimated mean time between failures (MTBF) of more than one million hours and offers a wide ambient operating temperature range of minus 40 to plus 85 degrees Celsius, enabling reliable deployment in a variety of demanding environments. It is also fully RoHS (Restriction of Hazardous Substances) compliant per EU directive 2002/95/EC, meets basic insulation requirements, and is certified with international safety and performance standards, including EN60950-1 TUV and UL/cUL 60950-1.
Emerson Network Power's IPM300 is available now and is competitively priced at $64.77 per unit in production quantities. For additional information, visit http://www.powerconversion.com/products/websheet/437/IPM300.
