Drive Module supports 5 axes of brushed/brushless motors.
July 28, 2010 -
Measuring 120 x 140 x 20 mm, 5-Axis Drive Card operates with NYCe4000 motion control system, which controls applications in semiconductor, solar, and metrology industry. Card uses PWM amplifiers that handle up to 70 W and can be configured to accommodate brushed or brushless motors. Tight integration of I/O with drive allows functions such as high-speed position capturing, laser synchronization, and brake control.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.
14001 South Lakes Dr.
Charlotte, NC, 28273
New Ultra-Compact Drive Module in Rexroth NYCe4000 Family to Drive up to 5 Axes
New drive module for NYCe4000 can drive up to 5 axes of brushed or brushless motors
(Hoffman Estates, IL - www.boschrexroth-us.com) The NYCe4000 motion control system is widely used to control demanding applications in the Semiconductor, Solar and Metrology industry. With its up to 10 integrated amplifiers it is a very attractive solution for controlling a large number of axes in an environment where space is limited. With the introduction of an ultra-compact 5-axis drive module, the space utilization can be optimized even further.

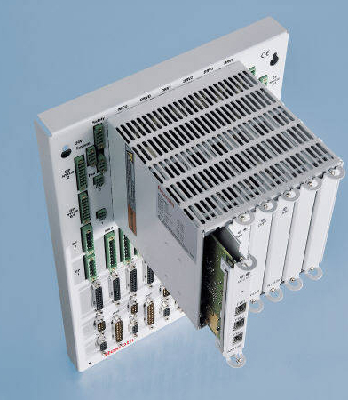

The new 5-axis drive card has an ultra-compact size of 120x140x20 mm. Multiple cards can be combined in a single housing with a motion controller. This makes it possible to control up to 10 axes in a very compact space.
Brushed and brushless motors
The new 5-axis drive module uses PWM amplifiers that can be configured in software to handle either brushed or brushless motors. The ability to control these different motor types from the same drive allows the user to simplify system architecture and reduce cost. The power range of the amplifiers is up to 70W. This complements the existing integrated drive modules that can handle up to 1000W.
Variety of encoder protocols
With the wide variety of encoder protocols available in the market today, it is vital to have an open architecture. The Rexroth NYCe4000 system therefore allows the user to connect a variety of encoder types to the same physical interface. The encoder protocol can simply be selected in software.
To be able to interface with sensors and external devices, all NYCe4000 drive modules come with integrated I/O. The tight integration of the I/O with the drive allows e.g. high-speed position capturing, laser synchronization, and brake control.
Bosch Rexroth AG is one of the world's leading specialists in the field of drive and control technologies. Under the brand name of Rexroth the company supplies more than 500,000 customers with tailored solutions for driving, controlling and moving machinery used in industrial and factory automation as well as in mobile applications. Bosch Rexroth is a partner for industrial applications, factory automation, mobile applications and renewable energy development. As The Drive & Control Company, Bosch Rexroth develops, produces and sells components and systems in more than 80 countries. In 2008 Bosch Rexroth AG, part of the Bosch Group, achieved sales of around $8.3 billion (5.9 billion Euro) with 35,300 employees. Visit www.boschrexroth-us.com for more information.
