Double Column Mitering Bandsaws are offered in 2 versions.
April 29, 2009 -
Featuring 6° canted saw frame with mitering from 0-60°, H6A-NC fully automatic and H6 SA semi-automatic have capacities of 20 in. at 90°, 17½ in. at 45°, and 9½ in. at 60°. Both models have a 1¼ x 17 ft 5 in. blade operating at 60-360 fpm, and material work height is at 32¼ in., with vise opening of 23½ in. Programmable H6A-NC saw can automatically program length, size of material, blade speed and quantity, and stores individual jobs for later recall.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Kalamazoo Machine Tool, Inc.
6700 Quality Way
Portage, MI, 49002
USA

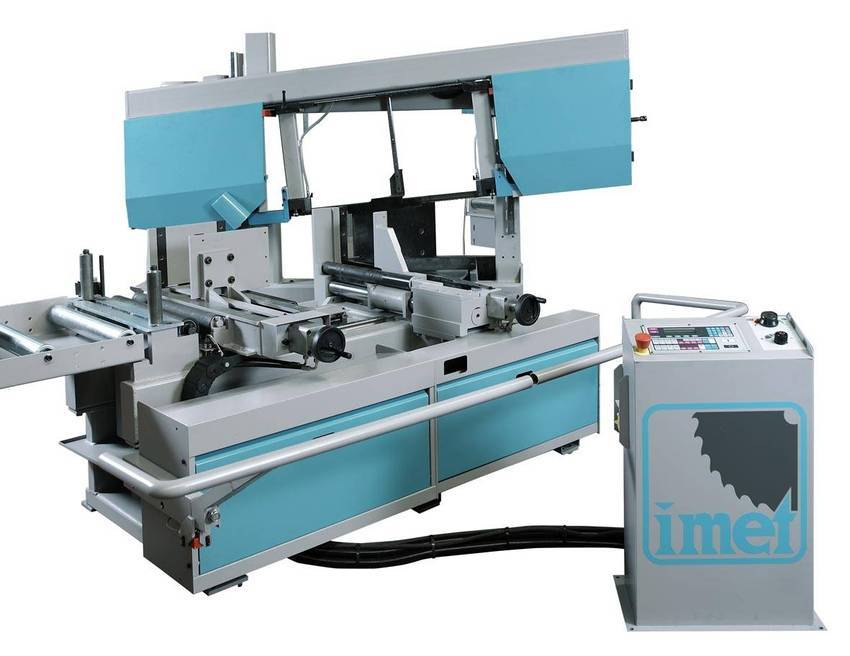

KMT Introduces Two New Double Column Mitering Bandsaws
Kalamazoo Machine Tool has introduced two new double column mitering bandsaws, the Model H6A-NC, a fully automatic machine, and the model H6 SA, which is a semi-automatic version. Both feature a saw frame canted 6 degrees, with mitering from 0-60 degrees. All functions are fully hydraulic, and sawfeed controls utilize precision control valves. A freestanding control console allows placement in the most advantageous operator location.
The model H6A-NC saw is a fully programmable machine that can automatically program the length, size of material, blade speed and quantity, and stores the individual jobs for later recall. The saw features two vises on the infeed side to ensure the material is clamped and never released during all feeding and sawing operations. Both feeder vise jaws clamp and unclamp, to facilitate crooked material. The barfeeder, which is a true shuttle-vise, travels on linear guides, and is driven by heavy-duty ball screw for maximum accuracy. The saw can operate in single cut semi-automatic mode, or in the fully automatic mode to repetitively cut material to length.
Both models have a 1-1/4 x 17' 5" blade operating at 60 -360 FPM. Material work height is 32-1/4", with a vise opening of 23-1/2". Capacities are 20" at 90 Degrees, 17-1/2" at 45 Degrees, and 9-1/2" at 60 Degrees.
|
|
|
|
|
|
|
|
