Dispenser produces small shots of 2-part materials.
June 16, 2003 -
Model I&J123-D50, for accurate and repeatable dispense cycling with 50 ml cartridges, can produce shot sizes of 0.002 cc. System includes stepping motor drive, coupled by Hydro-LinkŪ to double contact-ram that enters both barrels of cartridge. Control unit houses stepping motor and PALMŪ computer for controlling dispense setup and incorporates graphical display to indicate when cartridge is empty.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Fisnar Inc.
15 Corporate Drive, Suite E
Wayne, NJ, 07470
USA
Precision 50ml Twin-Pack Cartridge Dispener
Dispensing small shots of two-part materials accurately from 50ml twin cartridges is difficult due to the problems of material drooling after the shot cycle and the unnecessary
waste and clean up. It is also difficult to control the shot size using pneumatic or manual cartridge guns.

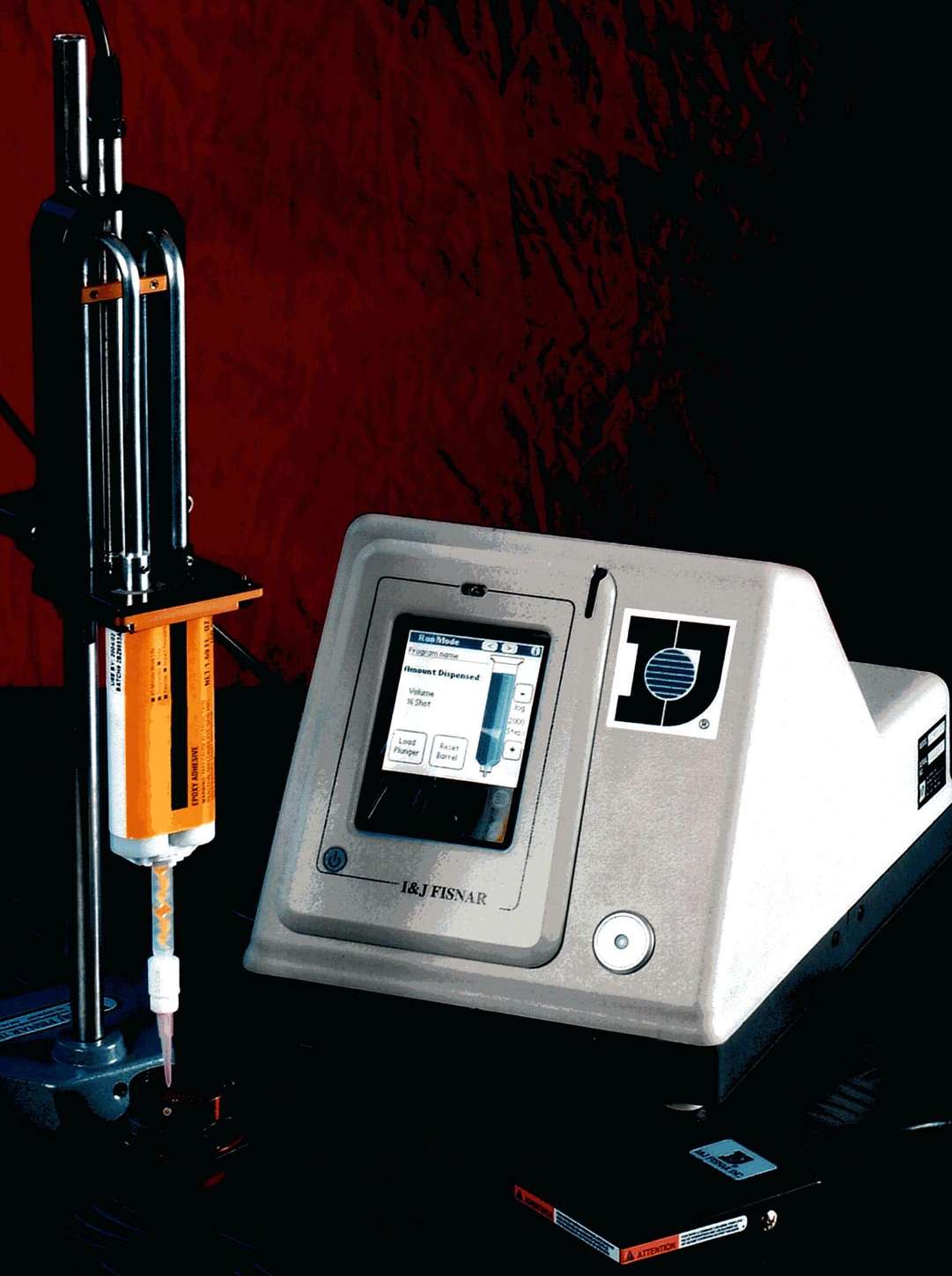

The I&J123-D50 from I&J Fisnar Inc. is designed to eliminate the problems of working with 50ml cartridges when accurate and repeatable dispense cycling is required. The system includes a stepping motor drive, coupled by a Hydro-LinkŪ to a double contact-ram that enters both barrels of the 50ml cartridge.
A control unit houses the stepping motor and a PALMŪ computer for controlling the dispense setup and incorporates a graphical display to indicate when the cartridge is empty. Shot sizes of 0.002cc are possible using the I&J123-D50. The stepping motor
mechanically forces the material through the mixing nozzle in precise steps, achieving a precise deposit.
The system can also be used with any 3-axis I&J Fisnar Inc. robot for automatic dispensing of beads or single shots from 50ml cartridges.
|
|
|
|
|
|
|
|
