Disc Thermostats handle high power applications.
May 16, 2002 -
Model T10/T11 Series provides temperature control for appliances such as dryers, dishwashers, water heaters, solar heaters, HVAC equipment, and vending machines. They have manual reset with 25 A capacity, input voltage of 120 or 240 Vac, temperature range of 104 to 350 deg F, and UL approval. Switch mechanism is actuated by temperature sensitive, snap-action bimetal disc, which may be enclosed or exposed. Thermal and electrical insulation prevents self-heating.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Selco Products Co.
8780 Technology Way
Reno, NV, 89521-5908
USA

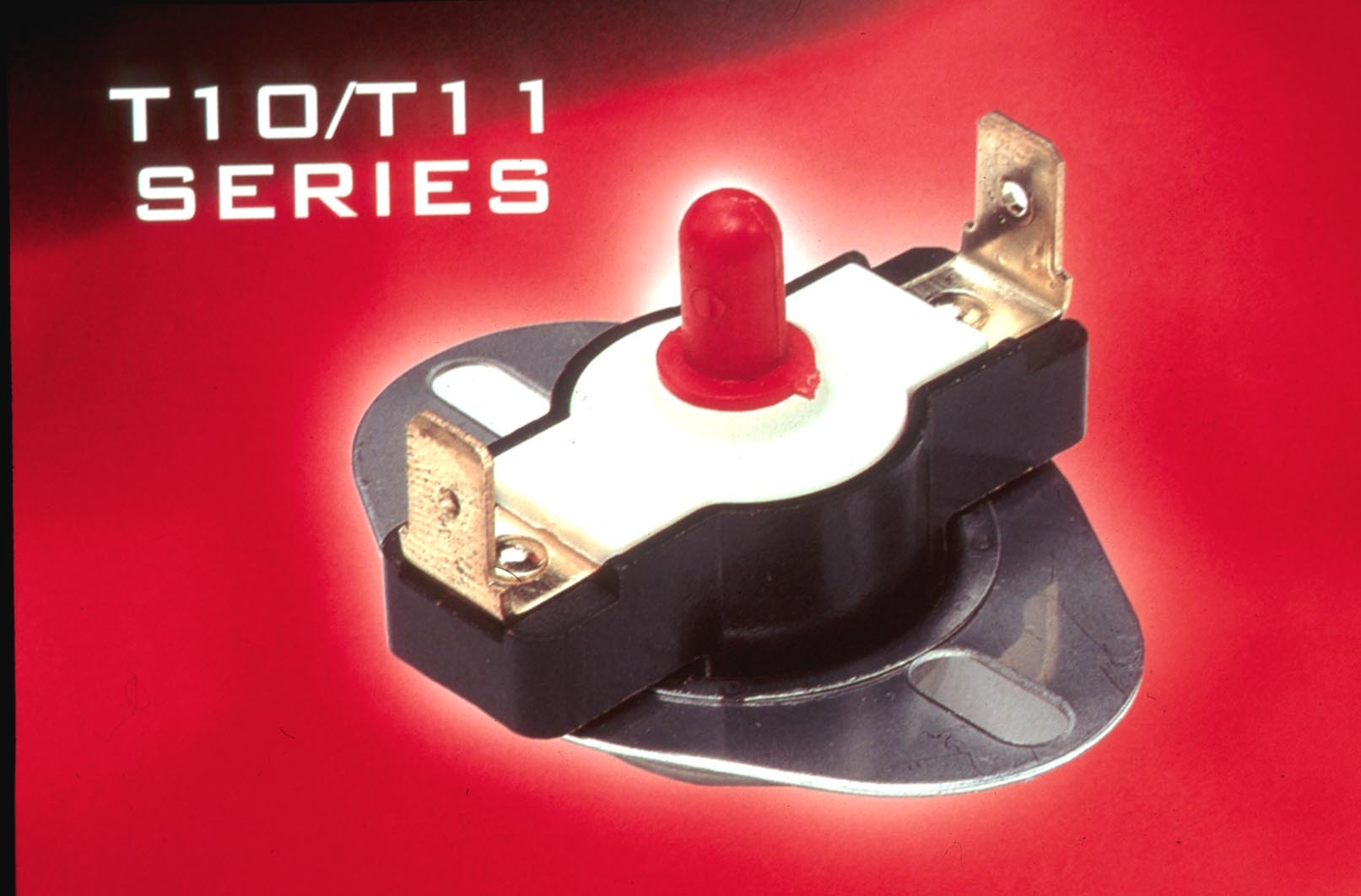

Selco Products Introduces 3/4" Disc Thermostats for Home Appliance, HVAC, and Vending Applications
ORANGE, Calif - May 3, 2002 - Selco Products, Inc. has added the T10/T11 Series 3/4" Disc Thermostats to its extensive line of thermal control products. Designed to provide proper temperature control and protection for a variety of applications, the new thermostats are ideally suited for use in high-power home appliances such as dryers, dishwashers, water heaters and solar heaters, as well as for HVAC equipment and vending machines.
The T10/T11 thermostats feature manual reset with a 25-amp capacity, operating temperature range of 104 to 350 degrees F. and UL approval. The switch mechanism is actuated by a temperature sensitive, snap-action bimetal disc. which may be enclosed or exposed, depending on design requirements. Outstanding disc characteristics and a contact wiping action minimizes contact chattering, false cycling and sparking. Thermal and electrical insulation around the bimetallic disc prevents self-heating and ensures actuation only from the temperature of the controlled equipment or the adjacent environment.
Designed to open on temperature rise, the S.P.S.T. devices are available in a variety of mounting configurations for optimum flexibility. A number of temperature ranges are available from stock or temperature calibrations can be factory preset to customer specifications.
Rated at 6,000 cycles, input voltage is 120VAC on 240VAC, 25-amp, resistive, 60Hz. The compact T10/T11 Series thermostats measure 2.00"W x 1.65"D x 1.14"H (51mm x 42mm x 28.8mm) and feature a universal mounting bracket for easy drop-in installation or replacement. With choice of airstream mounting (T10 Series) or surface mounting (T11 Series), the thermostats offer a variety of temperature open/close ranges.
For further information on the entire line of Selco thermostats, electronic controls, knobs, and digital and analog meters, contact Selco Products Company, 709 N. Poplar Street, Orange, Calif., 92868; Toll-Free: (800) 229-2332; Fax: 714-712-6222; E-mail: sales@selcoproducts.com: Web site: www.selcoproducts.com.
J2 Marketing Services (714) 529-2527 or e-mail: cynthiaguardia@j2marketing.com
|
|
|
|
|
|
|
|
