Dimensional Measuring System integrates ProKit 580 product.
Share:
Press Release Summary:
Dimensional measuring system incorporates ProScale Model 580 with 4 friction bearing sliding carriage assembly, onto which 8 x 1 in. hard anodized jaw and quick grip handle are attached. System includes general purpose digital readout that offers both nonlinear scaling and temperature compensation. Providing measurements of 48-190 in., it features predrilled holes on carriage for mounting other fixtures, jigs, or accessories such as wireless data transmitters.
Original Press Release:
ProKit 580
The ProKit 580 is an ideal foundation for a "build-it-yourself" dimensional measuring system.

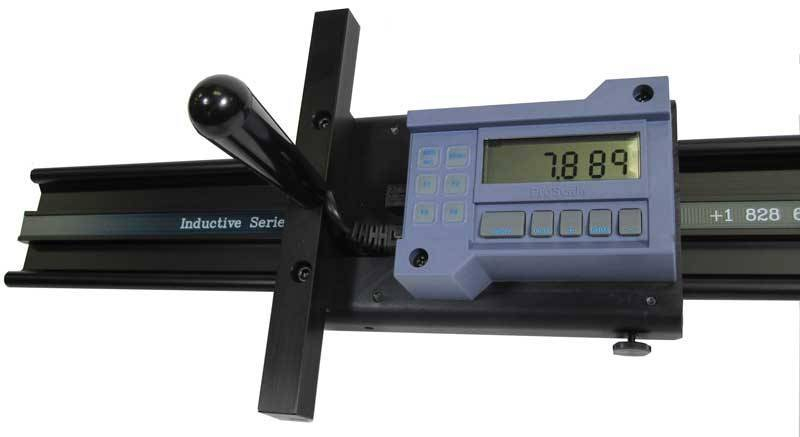

This product starts with a ProScale Model 580 measuring system with its 4 friction bearing sliding carriage assembly. Added to the sliding carriage is an 8 inch x 1 inch (200mm x 25mm) hard anodized jaw and a quick grip handle to move the entire assembly. This now becomes your moving measuring jaw, or stop.
To complete your dimensional measuring system simply recess the ProKit 580 into a table top, add a fixed stop at one end and start measuring products.
Features:
ProKit 580 systems are supplied with a special General Purpose Digital Readout incorporating both non-linear scaling and temperature compensation
This sliding carriage has several holes predrilled for mounting other fixtures, jigs or accessories such as a wireless data transmitter or other features as required for the user's application.
One year warranty against defects in workmanship.
ProKit 580 Specifications:
Accuracy
Uncompensated: .020 in (.51mm)
Compensation Enabled: .008 in (.20mm)*
Repeatability .001 in (.01mm)
Model 580-4 Measurements up to 48 inches (1200mm)
Model 580-8 Measurements up to 96 inches (2400mm)
Model 580-12 Measurements up to 144 inches (3600mm)
Model 580-16 Measurements up to 190 inches (4800mm)
Custom sizes are available to measure up to 16 feet (4800mm)
* Overall accuracy will ultimately be influenced by the quality of the measuring system construction (Abbe Error). When sound mechanical design and assembly have been incorporated into your design, and the system is calibrated using the non-linear compensation in the readout, accuracies stated above will easily be attainable.
Custom designs with hardened steel or stainless jaws, special measuring configurations and other user definable features are also available on request.
