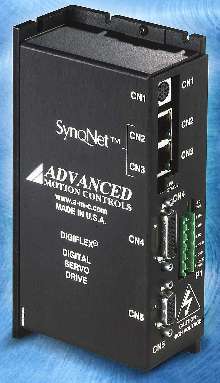

Digital Servo Drive has supply range of 20 Vdc to 460 Vac.
February 18, 2003 -
Series DRQ110EE is equipped with digital, 100Mbit/s SynqNet(TM) 100Base-T motion control network interface, which allows servo drive to be mounted in close vicinity of motor. Drive is suited for use with brushed or brushless, rotary or linear servomotors. Drive configuration and tuning are accomplished via graphical, Windows-based utility, using serial RS232/485 communication port. Maximum current output capability is from 15-100 A.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Advanced Motion Controls, Inc.
3805 Calle Tecate
Camarillo, CA, 93012
USA
Digital Servo Drive with 100Mbit/s Synqnet(TM) Interface Available with Supply Voltage Ranges from 20 VDC to 460 VAC
Camarillo,California...Advanced Motion Controls announces the availability of its DRQ110EE Series digital drive family with SynqNet(TM) interface. SynqNet(TM) is a high speed, 100Base-T motion control network which replaces the conventional +/-10V and encoder interface between controller and amplifier with a fully digital, 100Mbit/s interface. This allows the servo drive to be mounted in close vicinity of the motor and hence drastically reduce wiring cost and complexity. The SynqNet(TM) network technology was developed by Motion Engineering Inc (www.motioneng.com), and allows centralized motion control for high axis count, high precision applications. These fully digital drives are designed for use with brushed or brushless, rotary or linear servomotors. Drive configuration and tuning can be accomplished through a graphical and intuitive Windows based utility using the serial RS232/485 communication port. Extensive drive protection and error handling are also fully configurable. Various models are available with supply range of 20 VDC to 460VAC, and maximum current output capability in the range of 15A to 100A. Units with AC supply also incorporate a shunt regulator circuit with configurable turn on voltage.
To obtain additional information on this product, contact Product Manager Jan Bosteels (jbosteels@a-m-c.com) @ Advanced Motion Controls or visit our web site at www.a-m-c.com.
|
|
|
|
|
|
|
|
