Digital Input Module has 64-channels.
July 1, 2009 -
Controlled by daisy-chain RS-232 communication method, IA-3123-2 serves as building block for digital data collection of over 16,000 discrete points through single PC port. This intelligent 64-channel digital input module supports PNP and NPN devices as well as positive and negative logic. Automatic Report feature, which generates ASCII strings according to input status, eliminates need for polling data by software. Unit also incorporates stand-alone peer-to-peer operation.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Intelligent Appliance
P.O.B. 928
Netanya, IL, 42140
USA

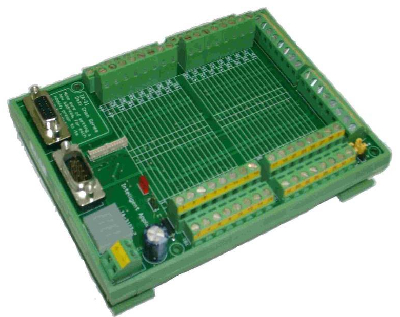

IA-3123-2 64-ch Digital Input Module
The IA-3123-2 is an intelligent 64-ch Digital Input Module, controlled by a Daisy-chain RS-232 Communication method, and is a part of the IA Multi-system Series.
This module has several special features, as "Automatic Report", "Peer-to-Peer" operation, handling both PNP and NPN devices, Positive and Negative Logic, while supporting a wide Input Voltage range.
The IA-3123-2 is a reliable, low cost building block for a Massive Digital Data Collection of over 16,000 discrete points, through a single PC Port.
"Automatic Report" is modules ability of generating ASCII Strings according to its input status, as a result of a change in its digital input status. This optional ability eliminates the need for "Polling" the data by software, leaving more time for Host CPU tasks.
Stand alone "Peer-to-Peer" operation is a unique ability to operate "remote" relays, populating a remote relays board as the IA-3131, through a wired RS-232 line or through a fiber or wireless as IA-2585-W pair, without the need of an intermediate computer, and without the need of writing code...
|
|
|
|
|
|
|
|
