Digital Humidity/Temperature Sensors provide long term stability.
August 16, 2011 -
Featuring laser trimmed, thermoset polymer capacitive sensing element, HIH-6130/6131 Series HumidIcon(TM) Sensors offer true accuracy of ±5% RH over compensated temperature range of 41-122°F and 10-90% RH. Optimized Total Error Band eliminates individual sensor testing and calibration. Offering long-term stability of 1.2% RH over 5 yr, series only requires 5-hr rehydration process to correct reflow temperature offset. Digital I2C output allows removal of signal conditioning components from PCB.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Honeywell
1985 Douglas Dr., N.
Golden Valley, MN, 55422 3935
USA
Honeywell Introduces New HumidIcon(TM) Digital Humidity/Temperature Sensors
New Series Combines Digital Output-Type Relative Humidity and Temperature Sensing for Lowest Total Cost, Energy Efficient Solution
MINNEAPOLIS, - Honeywell (NYSE:HON) introduced today the new HumidIcon(TM) Digital Humidity/Temperature Sensors, HIH-6130/6131 Series, offering industry- leading accuracy, stability, and energy efficiency in a lowest total cost solution that combines digital output relative humidity and temperature sensing. This new product is designed for potential use in HVAC-refrigeration, respiratory therapy, medical incubators, and medical microenvironment applications.
Honeywell HumidIcon(TM) Digital Humidity/Temperature Sensors have an industry-leading Total Error Band that provides the sensor's true accuracy of ±5 %RH over a compensated temperature range of 5 °C to 50 °C [41 °F to 122 °F] and 10 %RH to 90 %RH. Total Error Band, which includes all sources of error that a sensor might see, effectively eliminates individual sensor testing and calibration, supports system accuracy and warranty requirements, helps to optimize system uptime, and provides excellent sensor interchangeability.
"The Honeywell HumidIcon(TM) Series' industry-leading features and Total Error Band accuracy provide our customers with a real competitive advantage," said Valerie Rothermel-Nelson, Global Product Marketing Manager for Honeywell Sensing and Control. "When you also consider its ultra small SOIC8-pin package and low energy use, this sensor simplifies installation and offers the lowest total cost of ownership."
The new series offers industry-leading long-term stability of 1.2 %RH over five years. Many competitive humidity sensors need to go through a 12-hour at 75 %RH rehydration process (which requires special equipment chambers) to correct reflow temperature offset. The Honeywell HumidIcon(TM) device only requires a 5-hour rehydration process under ambient conditions (>50 %RH). This long term stability minimizes system performance issues, helps support system uptime by eliminating the need to service or replace the sensor during its application life, and eliminates the need to regularly recalibrate the sensor in the application, which can be inconvenient and costly.
The laser trimmed, thermoset polymer capacitive sensing element, and the element's multilayer construction (which provides resistance to most application hazards such as condensation, dust, dirt, oils and common environmental chemicals), help provide industry-leading stability and reliability.
Potential applications for the Honeywell HumidIcon(TM) Digital Humidity/Temperature Sensor include providing precision relative humidity and temperature measurement for:
o HVAC/R systems, thermostats, humidifiers/de-humidifiers, and humidistats to maintain occupant comfort and ideal storage humidity/temperature while achieving low energy consumption, supporting system accuracy and warranty requirements, maximizing system uptime, and improving overall system quality.
o Respiratory therapy such as sleep apnea machines and ventilators, to enhance patient comfort, safety, and treatment effectiveness with warm and humidified air.
o Incubators/microenvironments to support critical processes and experiments, enhancing process efficiency with desired climate conditions.
o Compressed air lines condensation removal; dry compressed air is critical for customer process control measurement.
o Ground-based and airborne weather stations, allowing real time and highly accurate monitoring and reporting of actual weather conditions.
The true, temperature-compensated digital I2C output typically allows the customer to remove the components associated with signal conditioning from the PCB to free up space and reduce costs associated with those components, which also can eliminate problems that could occur from having multiple signal conditioning components across the PCB. This simplifies integration to the microprocessor, eliminating the need for customer-implemented, complex signal conditioning.
The Honeywell HumidIcon(TM) sensor can operate down to 2.3 Vdc, which allows for use in low energy and wireless-compatible applications to enhance energy savings and prolong system battery life. This low operating voltage also means low power consumption: the sensor goes into sleep mode when not taking a measurement within the application, consuming only 1 µA of power versus 650 µA in full operation in a battery operated system. Sleep mode maximizes battery life, reduces power supply size, and reduces the application's overall weight. Optional one or two %RH level alarm outputs provide the user the ability to monitor whether the RH level has exceeded or fallen below pre-determined and critical levels within the application
Multi-function ASIC provides flexibility within the application by lowering or eliminating the risk and cost of OEM calibration. The high 14-bit humidity sensor resolution and 14-bit temperature sensor resolution within the application help the user's system detect minute relative humidity and temperature changes.

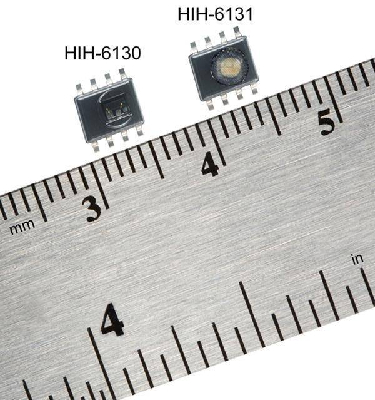

The ultra-small SOIC-8 SMD (Surface Mount Device) package comes in two configurations: the HIH-6130 (no filter, non-condensing) and the HIH-6131 (hydrophobic filter and condensation-resistant), which allow for use in many condensing environments. Cost-effective tape-and-reel packaging allows for use in high volume, automated pick-and-place manufacturing, eliminating lead misalignment to the PCB and helping the customer to reduce manufacturing costs.
