Digital Display shows pressure readings.
March 8, 2002 - Compact Model 327 can be installed in-line between power supply and pressure transducer so it can convert transducer's 0-5 Vdc, 0-10 Vdc, or 4-20 mA output to 3-1/2 digit display. It has 360-deg rotatable housing for viewing in any of 4 orientations. Detents ensure proper positioning in each axis. Applications include use in high-density modular block gas sticks and panels required for 300mm tools.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Setra Systems Inc., Weighing Systems Div.
159 Swanson Rd.
Boxborough, MA, 01719
USA

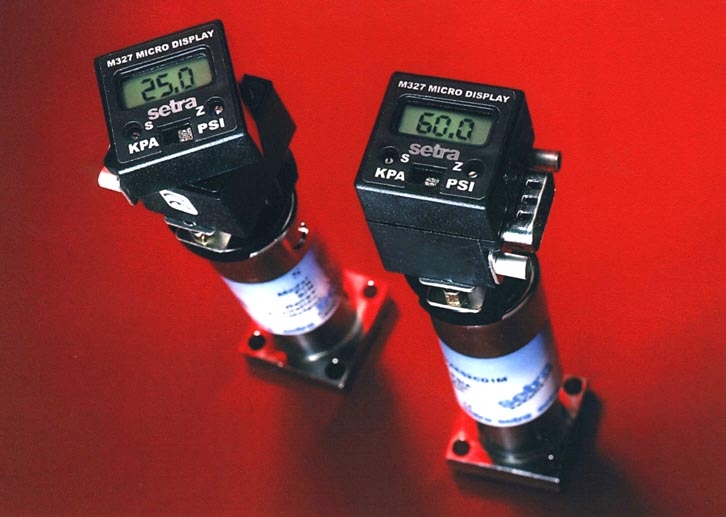

SETRA SYSTEMS OFFERS MODEL 327 COMPACT IN-LINE DIGITAL DISPLAY
A 360° rotatable housing provides adjustment for optimal display viewing
Boxborough, Mass. -- Setra Systems, Inc., a leading designer and manufacturer of ultra-high purity capacitance pressure transducers, introduces the new compact Model 327 digital display. Designed to meet industry requirements for smaller footprint devices, Setra's compact Model 327 Micro-Display has a rotatable face for 360° viewing, low power consumption, and an easy-to-read back-lit 0.25" LCD display making it ideal for use in high-density modular "block" gas sticks and panels required for today's 300mm tools.
Designed for in-line installation between the power supply and the pressure transducer, the Model 327 is calibrated to convert the transducer's 0-5 VDC, 0-10 VDC, or 4-20 mA output to a viewable 3-1/2 digit display. Its exceptionally small 1 1/8 in. footprint and compact connectors allow easy in-line installation between the pressure transducer and the user's data acquisitions system or power supply. A choice of electrical connectors is available, including a 9-pin D-sub or high-density 15-pin D-sub Bayonet.
The front face of the display rotates 360° for viewing in any of four orientations. Detents ensure proper positioning in each axis. Front access to the multi-turn zero and span potentiometers, switchable PSI and kPa pressure units, and pressure ranges from 10 PSI to 200 PSI full scale complete this unique design. When coupled with Setra's Model 227, 1-1/8" down-mount pressure transducer, this package provides the ultimate in pressure management and display. The Model 327 also interfaces with Setra's Models 217, 223, and 224.
Setra Systems, Inc. is a designer, developer, and manufacturer of high accuracy electronic instrumentation, which measures pressure, acceleration, and weight. Setra's products are used by many process and manufacturing industries, federal agencies, and research laboratories. In addition, all of Setra's pressure transducers are CE compliant.
|
|
|
|
|
|
|
|
