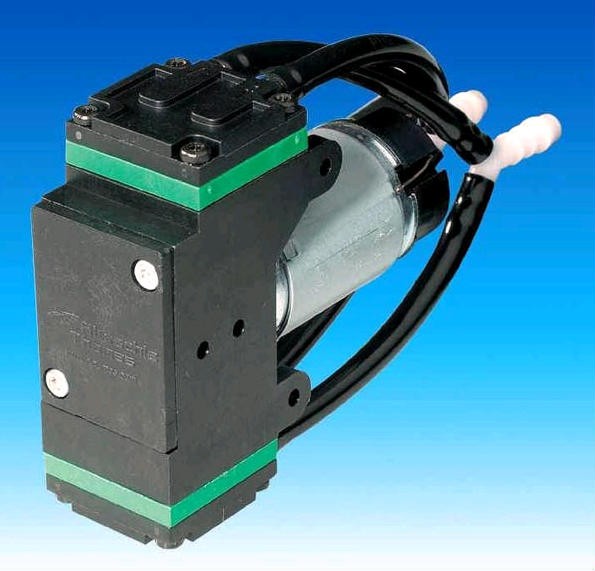

The new JADE diaphragm pump series from Rietschle Thomas is ideally suited for medical, automotive, air sampling and fuel cell applications. The pump is extremely efficient with a low current consumption, coupled with a very low sound level and very little vibration. Due to the special diaphragm geometry a high free flow rate is achieved despite the compact design.
The twin-headed pump incorporates a parallel tube configuration to reach a flow rates up to 8.2 l/min. Depending on the motor size, envelope dimension are only 87 x 110 x 75mm, and weighing in at 220g. At less than 45 dB(A) the JADE series operates at an extremely low noise level. Furthermore, the pump set-up is conducive to very little vibration. Jade is available either in a vacuum (final vacuum 78 %) or a pressure (final pressure 1.0 bar) versions.
JADE units are equipped with motors ranging from low cost to BLDC technology. Low cost and standard versions are available now; a brushless DC version will be available soon. The rated voltage is either 12 V or 24 V DC. Different eccentrics and different wetted materials for the diaphragm and valves are also available to meet specific duty requirement demands.
Reader enquiries:
Vicki Howard, Rietschle Thomas, Bellingham Way, New Hythe, Kent ME20 6XS 01622 716816 e-mail vhoward@rtpumps.com
|
|
|
|
|
|
