Development Kit supports Samsung S3C2440 microprocessor.
November 17, 2008 -

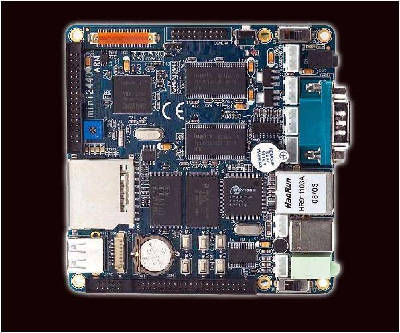

Measuring 100 x 100 mm, MINI2440 Development Board includes 64 M DRAM, 32-bit data bus, 64 M Nand Flash, and 2 M Nor Flash. Microprocessor features ARM920T core for hand-held devices and general applications. By providing comprehensive set of common system peripherals, S3C2440 eliminates need to configure additional components. Additional board features include LCD control, Ethernet RJ-45 interface, 3 serial ports, 4 user LEDs, and internal real-time clock.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Hiteg Ltd
JingXiu Garden, Building A, Room 1001,
Hainan, ,
China
A Full Featured, Compact Development Board is Being Introduced by HITEG
Hiteg Ltd., a Chinese company devotes to embedded ARM-development, recently announced a full featured, low cost development kit for the Samsung S3C2440 microprocessor (ARM920T).
The MINI2440 is an effecient ARM9 development kit with a comprehensive price, it characterizes simple method and high performance-price ratio. Based on the Samsung S3C2440 microprocessor, it embodies professional stable CPU power source chip and reset system to ensure the stability of the system operation.
The S3C2440 features an ARM920T core, a 16/32-bit RISC microprocessor, to provide hand-held devices and general applications with cost-effective, low-power, and high performance micro-controller solution in a small form-factor. The S3C2440X is developed using 0.13 um CMOS standard cell and a memory compiler. In addition, it adopts a new bus architecture called Advanced Microcontroller Bus Architecture (AMBA).
By providing a comprehensive set of common system peripherals, the S3C2440 minimizes the overall system costs and eliminates the need to configure additional components. The S3C2440 includes the following components: separate 16 KB instruction and 16 KB data cache, MMU to handle virtual memory management, TFT& STN LCD controller, NAND flash boot loader, system manager (chip select logic and SDRAM controller), 3-ch UART, 4-ch DMA, 4-ch timers with PWM, I/O ports, RTC, 8-ch 10-bit ADC and touch screen interface, camera interface, AC97 audiocodec interface, IIC-BUS interface, IIS-BUS interface, USB host, USB device, SD host & multimedia card interface, 2-ch SPI and PLL for clock generation.
Beside the powerful CPU module, The MINI2440 development board also features:
o SDRAM
- 64M SDRAM on board
- 32 bit data bus
- SDRAM clock frequency can reach upto 100MHz
o Flash Memory
- 64M Nand Flash on board, nonvolatile
- 2M Nor Flash on board, nonvolatile
o LCD control
o Interfaces and Resources
- One 10MM Ethernet RJ-45 interface (DM9000 ethernet chip adopted)
- 3 serial ports
- One USB Host
- One USB Slave (B-type interface)
- One SD card interface
- One stereo audio output interface, one MIC interface
- One 10pin (2.0mm space) JTAG interface
- 4 user LEDs
- 6 user buttons
- One PWM control buzzer
- One adjustable resistance, used for AD conversion test
- One I2C bus AT24C08 chip, used for I2C bus test
- One 20pin (2.0mm space) camera interface
- RTC battery on board
- Power supply interface, with switch and indicator
o System clock source
- 12M passive crystal
o RTC
- Internal real time clock, battery backed
o Expansion interfaces
- One 34pin 2.0mm GPIO interface
- One 40pin 2.0mm system bus interface
o Dimension
- 100 x 100 (mm)
o OS supported
- Linux 2.6.13
- WindowsCE.NET 5.0
More surprises can be found at http://www.developmentboard.net
|
|
|
|
|
|
|
|
