DPST Reed Relay Modules are controlled via USB.
July 1, 2011 -
Rated 0.5 A @ 120 Vac and 0.5 @ 100 Vdc with rhodium contact material, JSB2431 series has DPST relay outputs that provide host control between 2 poles of common line and NO reed relay connection points. Lack of moving armature extends relay life by reducing mechanical wear, and sealed design protects contacts from corrosion. Wire connection to relays is made with on-board screw type terminals, and user communicates with module from programming/test languages supporting USB communications.
Original Press release
J-Works,Inc
11024 Balboa Blvd #402
Ganada Hills, CA, 91344
USA

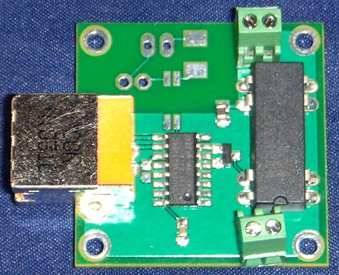

USB DPST Reed Relay Module.
J-Works has started shipping the JSB2431 series of DPST reed relay modules controlled over the USB. The DPST relay outputs provide host control between two poles of a common line and normally open reed relay connection points. The relays are rated at 0.5A @ 120VAC and 0.5 @ 100VDC with a contact material of rhodium. The contacts of the reed relay are a magnetic material eliminating the need for a armature to open and
close the contacts. They are sealed so the contacts are protected from corrosion. The lack of moving armature enhances the life of the relay by reducing mechanical wear. Wire connection to the relays are made with on-board screw type terminals.
The user communicates with the module from any programming or test language that supports USB communications as shown in provided sample applications. This small form factor low cost module replaces internal pc based plug-in cards in various test, control, monitor and measurement applications.
Complete product specifications available at web site www.j-works.com. Single unit price for the Model JSB2431 starts at $56.50. Delivery is from stock.
J-Works, Inc. is a developer and manufacturer of a complete line of USB based industrial controls and test instrumentation that supports innovative solutions for the test and control marketplace.
|
|
|
|
|
|
|
|
|
|
|
