DC Gear Motor accepts any 12 Vdc source.
January 8, 2009 -
Measuring 2.14 in. in dia and 7.75 in. long, Model No. MMP-TM55-24-12V GP52-079 has output rated for 80 in.-lb continuous torque, at 25 rpm, and 443 in.-lb peak. Weighing 4 lb, it has keyed output shaft of 12 mm dia and 25 mm long. Reversible unit requires just 3.6 A at 12 Vdc to generate its Full Load Torque. Available with motor windings for 24, 36, 48, 60, and 90 V, IP54 protection rated motor suits battery powered electric vehicles, robotics, and automation applications.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Midwest Motion Products
10761 Ahern Ave., S.E.
Watertown, MN, 55388
USA
Compact New 12 Volt DC Gearmotor Develops 80 IN. LB. Torque at 25 RPM
Providing Brushed and Brushless DC Servomotors, Servo Amplifiers, Precision Gearmotors,
Optical Encoders, Linear Actuators, DC Power Supplies, and Sealed (IP-65) Motor Speed Controls.
"Powerful, Lightweight, Unit provides benefits for battery powered Electric Vehicles, Robotics & Automation Applications"
18 Dec. 2008

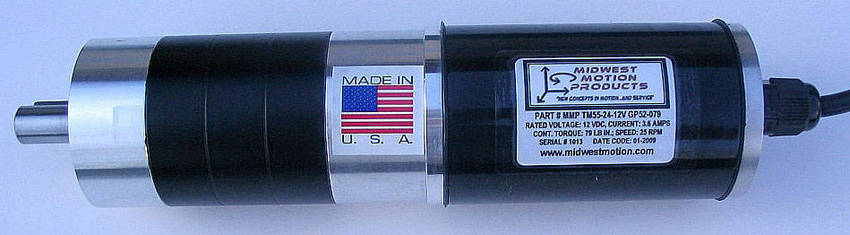

Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear Motor, the Model No. MMP-TM55-24-12V GP52-079. Accepting any 12 Volt DC source, including battery power, this robust Gear Motor measures just 2.14" in Diameter, by 7.75" long, and has a keyed output shaft of 12mm diameter by 25mm long.
Easy mounting is accomplished with 4 "face mount" M5 threaded holes, equally spaced on a 40mm Dia. B.C. The output of this reversible gearmotor is rated for 80 IN LBS continuous torque, at 25 RPM, and 443 IN LBS Peak.
Despite its compact size, and weight of approximately 4 pounds, it's an efficient design, requiring just 3.6 Amps at 12 Volts DC to generate its Full Load Torque. That translates into long life battery charge, very low noise operation, and lower costs
for related drive electronics. Motor windings for 24, 36, 48, 60 & 90 Volts are available.
This unique design is rated at an "IP 54" protection level for operation in harsh environments. Variable Speed can be accomplished with our fully compatible Speed Controls, Model MMP 25A-12V, or MMP 20A-12V-RSP.
Samples are available FROM STOCK for rapid prototyping needs. An up to date listing of Finished Products available from Stock can be found at http://www.midwestmotion.com/inventory.pdf
Typical options available from the company include Servo Motors with integral Optical Encoders, Failsafe Brakes, Analog Tachometers, and a variety of Planetary Gearheads, with standard ratios ranging from 3:1 to 2653:1, and standard or low backlash precision gearing available. Motor Winding Options include 24V, 36V, 48V, 60V and 90 Volts DC.
The company offers a variety of standard ancillary equipment including DC power supplies, DC Servomotors, PWM Servo Amplifiers, Motor Speed Controls, Linear Actuators and a wide variety of DC gear-motors. Custom Motor Shaft and mounting configurations are also available. Typical applications include Battery Operated Motors & E.V. drives, Medical, Mobility / Accessibility products, Robotics & Automation including (Military) Unmanned Guided Vehicles, Semiconductor Processing Equipment, Actuators, Packaging & Labeling Machines, Woodworking & Metalworking Machines, Dynamic
Displays for Tradeshows and many other applications requiring precise motion control.
Each respondent is eligible to receive a free copy of the MMP "e-Catalog" on CD-ROM.
For further details, please contact:
Randy Cordes,
Sales & Service
Midwest Motion Products
10761 Ahern Avenue SE, Watertown, MN. 55388
Phone: 952-955-2626
Fax: 480-247-4096
Email: engineering@midwestmotion.com
url: www.midwestmotion.com
