DC/DC Switching Regulators offer efficiency rates up to 96%.
April 25, 2011 -
Model AMSRW-78Z has up to 8:1 input voltage range spanning from 9-72 Vdc and steps down to output voltages from 3.3-15 Vdc. Featuring up to 6:1 input voltage range from 4.5-30 Vdc, AMSRB-78-NZ also steps down to regulated outputs ranging from 3.3-15 Vdc and offers output ripple and noise of 25 mV p-p. Both products operate in ambient temperature range of -40° to +85°C and include continuous short circuit protection, output current limit, and thermal shutdown protection.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Aimtec, Inc.
3883 St. Jean Blvd., Suite 502
Dollard Des Ormeaux, QC, H9G3B9
Canada
DC/DC Switching Regulators with Twice the Efficiency at Just One Quarter the Size of Linear Regulators.
Montreal, Canada - Aimtec adds two new series of DC/DC switching regulators bring its complete product offering to over 40 non-isolated, switching regulators as pin-to-pin replacement to 78xx linear regulators to meet virtually every configuration requirement.

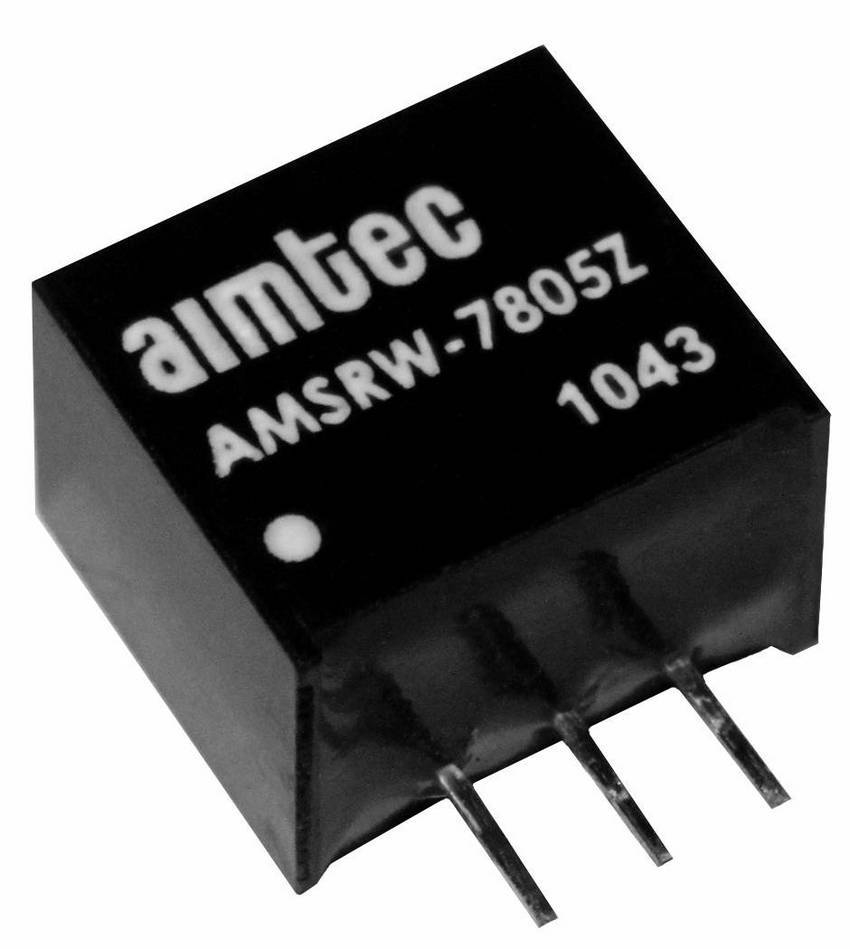

The new AMSRW-78Z differentiates itself with ultra wide (up to 8:1) input voltage range spanning from 9 to 72VDC stepping down to highly regulated and protected output voltages ranging from 3.3 to 15VDC.
Alternatively, the new AMSRB-78-NZ offers a cost effective solution without compromise. Wide (up to 6:1) input voltage range spanning from 4.5 to 30VDC step down to regulated and protected outputs ranging from 3.3 to 15VDC. The AMSRB-78-NZ features low output ripple and noise of 35mV p-p, an important feature for noise sensitive applications.
Both AMSRW-78Z and AMSRB-78-NZ produce maximum output currents of 500mA at efficiency rates of up to 96% that remain virtually constant over the entire input range. Operating continuously at full load without derating below +71° C (AMSRB-78-NZ) or +60° C (AMSRW-78Z), within an ambient temperature range of -40° to +85°C eliminates the need for the costly and bulgy heasinks associated with linear regulators.
Designed in a compact, SIP3 packages (11.68 x 9.65 x 7.50mm), both series are pin compatible to the TO-220 package for low profile circuit implementations such as portable power and standby-power applications.
Feature rich with continuous short circuit protection, output current limit and thermal shutdown, samples of Aimtec's AMSRW-78Z and AMSRB-78-NZ series of DC-DC switching regulator converters are available from stock and can be ordered through your regional Franchised Distributor. Prices start at $7.75/1000+pcs.
ABOUT AIMTEC
Headquartered in Montreal, Canada, with offices in Europe and Asia, Aimtec is actively involved in the research and development of modular switching power supplies. Aimtec's product portfolio includes modular AC-DC and DC-DC switching power converters and LED drivers. Aimtec's designs are intended to assist customers worldwide in reducing engineering design time and expense, while facilitating miniaturization and performance enhancement of their applications.
|
|
|
|
|
|
|
|
