DC-DC Converters target embedded point-of-load applications.
May 30, 2012 -

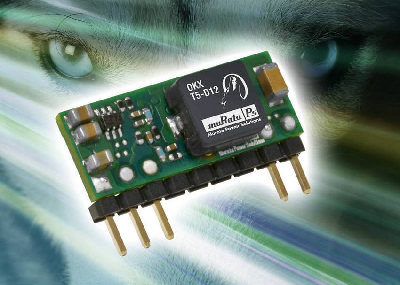

Housed in 5-pin single-in-line package measuring 22.9 x 10.2 x 7.1 mm, OKX Series includes 4 models that provide 3 or 5 A outputs with either 5 or 12 V nominal inputs. Output voltage is programmable from 0.75-3.63 Vdc for 5 Vin part, and up to 5 Vdc for 12 Vin part. Operating in most environments from -40 to +85°C, miniature non-isolated converters are capable of driving ceramic capacitive loads up to 1,000 µF and provide typical efficiency of 94.5% at 3.3 Vout.
Original Press release
Murata Power Solutions, Inc.
11 Cabot Blvd.
Mansfield, MA, 02048
USA
New Point-of-Load DC-DC Converter to include 3A and 5A SIP packages
Murata Power Solutions today announced the OKX series of miniature non-isolated single output DC-to-DC converters designed for embedded point-of-load (PoL) applications. Within the OKAMI OKX series there are 4 models that provide 3 A or 5 A outputs with either 5 V or 12 V nominal inputs. Complementing the existing OKY range of surface mounted PoL converters available from Murata Power Solutions, the new OKX-T/3 and OKX-T/5 series additions are packaged in a popular space-saving 5-pin single-in-line package (SIP). Design engineers now have a choice of package format depending on available board space and application requirements.
Measuring just 22.9 x 10.2 x 7.1 mm, the SIP package meets Distributed-Power Open Standards Alliance (DOSA) specifications and is designed as a drop-in replacement for other DOSA-compliant parts.
These highly efficient converters, typically 94.5% at 3.3 Vout, and capable of driving ceramic capacitive loads up to 1,000 uF, have tight load regulation making them ideal for powering applications such as FPGAs and DSPs. The output voltage is programmable from 0.75 to 3.63 VDC for the 5 Vin part, and up to 5 VDC for the 12 Vin part.
Input under voltage lockout, output short circuit, output over current, and over-temperature protection features are offered across the OKX series. The On/Off Control feature is also standard in either Positive or Negative logic.
The converters have exceptional thermal derating performance and can operate in most environments from -40 to +85 degrees C.
Typical applications include powering CPUs, datacom / telecom systems, server and storage equipment, industrial systems, and programmable logic and mixed voltage designs.
The modules are RoHS-compliant and meet the international safety standard UL/EN/IEC 60950-1 for IT and commercial equipment.
