DC/DC Converters deliver up to 20 W regulated power.
June 7, 2011 -
Offering 4:1 input range with nominal input voltages of 24 and 48 Vdc, QMJ Series delivers single outputs of 3.3, 5, 12, and 15 Vdc, as well as dual outputs of ±12 and ±15 Vdc. Units operate with efficiencies up to 90% and include remote on/off, output trim, and short circuit protection. Housed in 1 x 1 in. package, converters feature temperature range of -40 to +70°C with no de-rating. RoHS-compliant units are encapsulated with thermally conductive potting compound in 6-sided metal case.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
1760 S. 151st St., W.
Goddard, KS, 67052
20-Watt 1"x 1" DC/DC Converter with a 4:1 Input

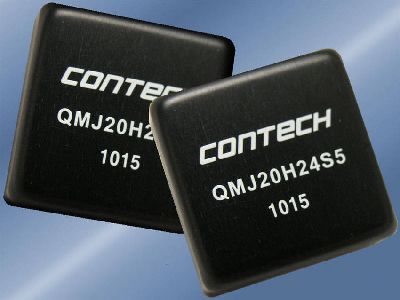

ConTech, a Division of Calex, announces the "QMJ" Series of DC/DC converters. The QMJ Series offers up to 20 Watts of fully regulated output power. The series
offers a 4:1 input range with nominal input voltages of 24VDC and 48VDC. Single outputs offered are 3.3, 5, 12, and 15VDC. Dual outputs are +/-12 and +/-15VDC.
The footprint used on the 1 x 1" package is same as that of an industry standard 1 x 2", there by offering a space saving alternative. The QMJ Series operates with efficiencies as high as 90%. Features include Remote On/Off, Output Trim, and
Short Circuit Protection. The operating ambient temperature range of the QMJ is -40 to +70°C with no de-rating. The unit is encapsulated with a thermally conductive potting compound in a six-sided metal case for improved thermal performance in still air environments. The QMJ series is RoHS compliant.
Pricing for the QMJ Series is as low as $23.15/ea (1K). Units are available from stock to 6 weeks. To view a complete data sheet of the QMJ series go to http://ConTech-us.com/pdf/QMJ.pdf To see our complete product line visit our website at www.ConTech-us.com. You may contact us at sales@ConTech-us.com or call Toll free (877) 302-4411.
