Cyclone Dust Collectors are built to optimize space.
July 22, 2009 -
Suited for plants where space is tight or head room is limited, Horizontal HE Series separates dust and particulates from plant and process air. Units serve as primary receivers in dilute phase pneumatic conveying systems handling large airborne solids with high temperature or moisture content. Able to be built to end-user requirements, cyclones lie horizontally, operate without any filter media, and are available in carbon or stainless steel with round or square inlets.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
AIRLANCO
PO Box 398
Falls City, NE, 68355-0398
USA

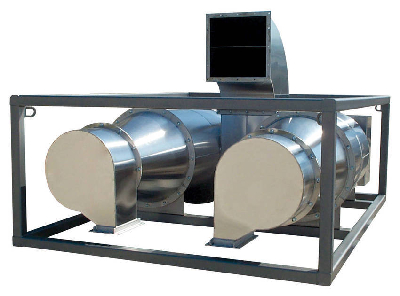

Horizontal AIRLANCO® Dust Collection Cyclones Maximize Space
FALLS CITY, NE - In plants where space is tight or head room is limited, Horizontal Dust Collection Cyclones by AIRLANCO maximize collection efficiency and cut overall costs, while meeting customers' clean air needs. AIRLANCO HE (High-Efficiency) Series Cyclones serve as primary receivers in dilute phase pneumatic conveying systems where conventional filter receivers might get plugged or overburdened by large airborne solids conveyed at extreme temperatures or with high moisture content. Units lie horizontally and can be custom built to meet the users' needs and space. Vertical HE Dust Collection Cyclones and other models are also available.
Economical Horizontal HE Cyclones feature an AIRLANCO proprietary interior design and operate without any filter media to clean, replace, or maintain. Dust particles are forced against the walls - where inertia and gravity separate them from the air stream. During the final phase of particle separation, a riser tube inside the Cyclone directs the secondary vortex created by the internal airflow to the draw-thru discharge opening. The draw-thru is rotatable and can be positioned for the most convenient clean air orientation. Cyclones come in durable carbon or sanitary stainless steel, with round or square inlets, and supply a variety of ancillary components - such as duct work, fans, airlocks, and other equipment to provide complete integrated systems. Construction includes a heavy-duty support structure to simplify installation and ensure safe, stable operation.
All AIRLANCO Cyclones can separate hot, cold, moist, and large particles that can plug or damage filter receivers. Individual models handle moist material from ovens or coolers in high volumes and feature involute inlets that run 180 degrees around the Cyclone circumference to maximize cyclonic separation. The Cyclone hopper cone features an 8״ diameter bolted inspection door. The standard hopper slope is 75º to ensure proper particle flow. If the diameter of the discharge must be nonstandard, the hopper height will be changed to maintain optimum slope. Flanged construction and lifting lugs facilitate transport and on-site assembly.
Horizontal HE Series Cyclones normally provide high-efficiency separation of dust and particulates from plant and process air. They can handle high temperatures, high-moisture content, and high airflow. To obtain maximum separation efficiency, their size is limited; consequently, HE Cyclones are often ganged to meet the demands of very high air volumes.
For more information and FREE literature, call AIRLANCO at 1-800-500-9777 (US & Canada) or 402-245-2325; or send e-mail to rkrebs@airlanco.com. Visit AIRLANCO's website at www.airlanco.com or write AIRLANCO at P.O. Box 398, Falls City, NE 68355-0398, USA.
|
|
|
|
|
|
|
|
