Control System accurately positions work tables/platforms.
August 24, 2005 - Closed-loop Position Control provides precision platform positioning with repeatability up to ±1/16 in. on large deck platforms and ±1/32 in. on small industrial tables. Requiring continuous-duty-rated power unit, system consists of LDT, proportional hydraulic valve system, PLC, supporting hardware, and software program. Possible configurations include platform indexing, repeating multiple positions, and user-programming of positions.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Advance Lifts, Inc.
701 Kirk Rd.
St. Charles, IL, 60174
USA

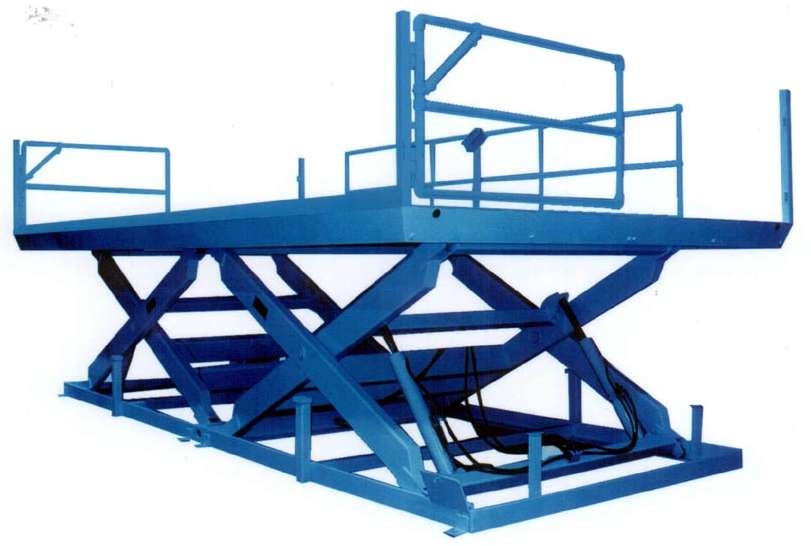

Advance Lift's Position Control System
Advance Lifts, Inc. of St. Charles, Illinois, has designed a Position Control System for applications where a limit switch or proximity sensor is not accurate enough and/or not flexible enough, the Advance Lifts closed-loop Position Control option can provide platform positioning to multiple positions with a precision and repeatability up to +/-1/16th of an inch on large deck platforms and up to +/- 1/32nd of an inch on smaller industrial tables.
Advance Lifts Position Control option is an intermediate price point between limit switch technology and full bore custom installed position control systems. The system requires the use of a continuous duty rated power unit and consists of an LDT (linear displacement transducer), a proportional hydraulic valve system, a PLC (programmable logic controller), the necessary supporting hardware and a proprietary software program. The Advance Lifts factory can custom tune the option to provide position control solutions that meet tough industry requirements. Possible configurations include platform indexing (up or down), repeating multiple positions, user-friendly programming of positions and more. Platform operation can be initiated automatically, by an operator, by inputs from another machine or from a network connection.
For over 30 years, Advance Lifts, Inc. has been manufacturing loading dock equipment, work positioners, lifts tables, recycling equipment and packaging equipment.
To find out more Information visit us on the Internet at www.advancelifts.com.
For technical information contact Dave Turkes, davidt@advancelifts.com or call 800-843-3625. |
|
|
|
|
|
|
|
