Connectors/Cable Assemblies suit telecommunications hardware.
August 29, 2002 - RFH Series Connectors are low profile MHF coaxial connectors with mounting area of 3 mm x 3 mm on PCB and 2 mm height when mated. Cable assemblies test frequency rating VSWR of 1.3 max up to 6 GHz. MHF connectors have nominal impedance of 50 ohms with dielectric withstanding voltage of 150 Vac rms and temperature range of -40 to +90°C. RFH-4910-1 right angle plug and RFH-4911 PCB mount MHF socket connectors are gold plated.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
RF Industries
7610 Miramar Rd.
San Diego, CA, 92126 4202
USA
MHF Connectors and Cable Assemblies Added to RF Connector Line

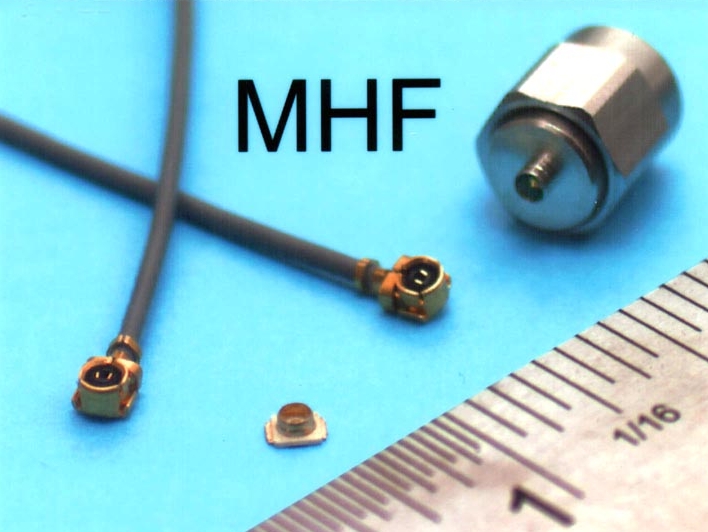

The new RFH series connectors are small and low profile MHF coaxial connectors with a mounting area of 3mm x 3mm on PCB and 2mm height when mated. Designed for applications operating from DC to 6 GHz, they are used for high density data and telecommunication hardware, such as PDAs, handsets, personal communication systems (PCS), global positioning systems (GPS), wireless LAN (WLAN), wireless local loops (WLL), and paging. These cable assemblies test a frequency rating VSWR of 1.3 max. up to 6 GHz. The MHF connectors have a nominal impedance of 50 Ohms, with a dielectric withstanding voltage of 150V AC rms and temperature range of -40 C to +90 C degrees. The RFH-4910-1, right angle plug, and RFH-4911, PCB mount MHF socket, connectors are gold plated and 1.13mm cable assemblies using this connector are available as RFW-10506-XX, MHF plug to MHF plug, and RFW-10507-XX, MHF plug to pigtail, or cut end.
Available from RF Connectors Distributors throughout the US, Canada and Mexico. For additional information call 800-233-1728 or 858-549-6340. You can also e-mail: rf@rfindustries.com. Visit our web site at www.rfindustries.com.
|
|
|
|
|
|
|
|
