Compensation Units enable precise handling.
July 8, 2009 -
Designed to mount to PGN+ and PZN+ grippers, Model AGE-F uses self-centering spring force to compensate for deviations up to 5 mm in X- and Y-axis. Unit features cross roller guides and operates purely mechanically, without pneumatic elements. Utilizing elastomer pads, Model AGE-E compensates for deviations up to 4 mm in X- and Y-axis with angular compensation up to 3.5°. Unit mounts directly to PGN+, PZN+, JGP, and JGZ grippers from sizes 50-200.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Schunk
211 Kitty Hawk Dr.
Morrisville, NC, 27560
USA
New Compensation Units for Precise Handling

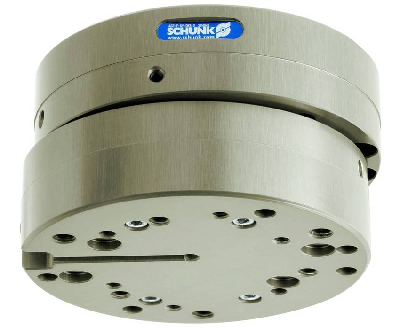

SCHUNK, Inc. is introducing two new compensation units. The AGE-F compensation unit is self centering using spring force and compensates for deviations up to 5mm in the X- and Y-axis. Three different spring rates are available for each of the four sizes, which can be preloaded to specific values using an adjustment screw. Equipped with cross roller guides, the AGE-F operates purely mechanically, without any pneumatic elements. This allows for smooth running, lower susceptibility to wear and longer life. In addition, by being designed to mount directly to PGN+ and PZN+ grippers and have robot ISO flanges on the opposite mounting surface, the AGE-F offers a very slim solution.
The AGE-E compensation unit utilizes elastomer pads which allow the unit to compensate for deviations up to 4mm in the X- and Y-axis and angular compensation of up to 3.5°. Also, the optional pneumatic centering lock allows the unit to be held rigidly on-center when needed. The AGE-E is available for direct mounting to PGN+, PZN+, JGP and JGZ grippers from sizes 50 up to 200. Depending on the gripper being used, the maximum handling weight the AGE-E can handle ranges up to 24 kg.
|
|
|
|
|
|
|
|
