Compact SMT 1 A Switching Regulator achieves high efficiencies.
April 27, 2012 -

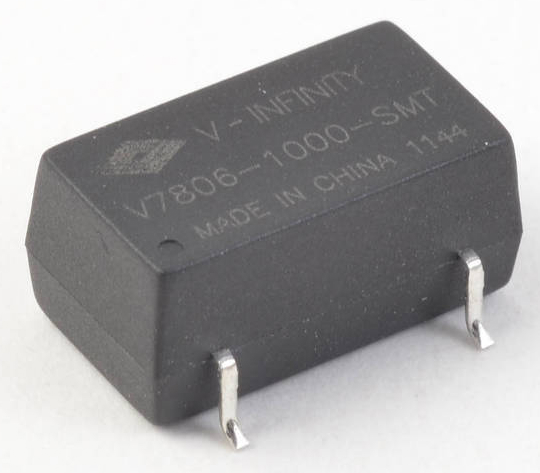

Offering alternative to linear regulators, V78XX-1000-SMT series achieves efficiencies up to 92% via use of switching topology. This 15.24 x 8.50 x 7.00 mm series, suited for use where board space is at premium, has 5-18 Vdc input range and is offered with regulated output voltages of 2.5, 3.3, 5, or 6 Vdc. Remote on/off control, short circuit protection, and over temperature protection are standard features, and trim pin offers output voltage adjustability.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
CUI, Inc.
20050 S.W. 112th Ave.
Tualatin, OR, 97062
USA
CUI Expands SMT Switching Regulator Line
TUALATIN, Ore. - CUI Inc announced the addition of a 1 A surface mount series to its highly efficient V78 dc switching regulator line. The V78XX-1000-SMT is designed as a high performance alternative to linear regulators, offering efficiencies up to 92%. This is in contrast to efficiencies typically ranging from 40~60% in equivalent linear regulators. The V78 series achieves higher efficiencies through the use of a switching topology, making it ideal for applications where board space is at a premium and energy efficiency is a concern.
The V78XX-1000-SMT series is compact, measuring 15.24 x 8.50 x 7.00 mm. An input range from 5 to 18 Vdc and regulated output voltages of 2.5, 3.3, 5, and 6 Vdc are offered. Featuring remote on/off control, short circuit protection, and over temperature protection, the V78 series boasts a temperature range of -40 to +85°C, making it suitable for use in most operating environments. The units also feature a trim pin for output voltage adjustability.
The V78XX-1000-SMT series switching regulators are available now through Digi-Key starting at $7.04 for 1000 pieces. Please contact CUI directly for OEM quantities.
Summary
Product name: V78XX-1000-SMT series
Availability: 3-4 weeks production
Possible users: applications where board space is at a minimum
Primary features: 92% efficient, no heat sink needed
Cost: pricing starts at $7.04 for 1000 pieces through Digi-Key
