Compact Power Inductors offer optimized DC bias characteristics.
August 25, 2010 -
With respective DC resistance ranges of 0.070-0.265 W and 0.09-0.33 W, BRL2515 measures 2.5 x 1.5 mm with max height of 1.2 mm and BRFL2518 measures 2.5 x 1.8 mm, with max height of 1.0 mm. Both RoHS-compliant, wire-wound power inductors operate from -25 to +105°C and are designed for DC-DC converter applications in mobile devices such as cell phones, smart phones, DSCs, and portable music players. Saturation current ratings range from 650 to 1,500 ma (BRL2515) or 1,200 mA (BRFL2518).
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Taiyo Yuden (USA), Inc.
1930 N. Thoreau Dr., Suite 190
Schaumburg, IL, 60173
USA
New Compact, Low Profile Power Inductors from Taiyo Yuden
TAIYO YUDEN UNVEILS TWO NEW COMPACT, LOW PROFILE POWER INDUCTOR FOR MOBILE DEVICES

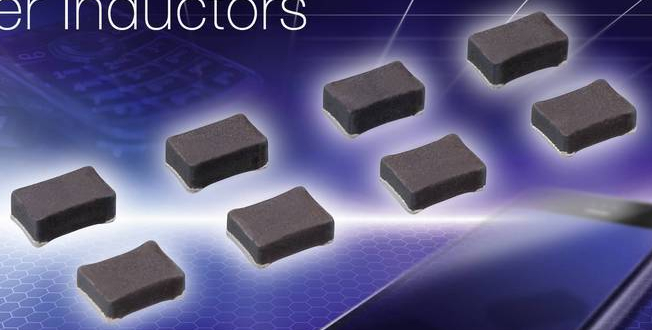

Schaumburg, IL - Taiyo Yuden's new BRL2515 (2.5 x 1.5mm, with a maximum height of 1.2mm) and BRFL2518 (2.5 x 1.8mm, with a maximum height of 1.0mm) wire-wound power inductors offer industry-leading DC bias characteristics in a thinner, smaller size.
With a rated saturation current of 1000 mA and inductance of 2.2 µH, the BRL2515 has an impressive DC bias for a chip type coil, with a profile now 17% smaller than the existing BRL2518. The DC resistance of the BRL2515 ranges from 0.070 W to 0.265 W and the BRFL2518 offers a DCR range of 0.09 ohms to 0.33 ohms, while both featuring a low ACR. Operating temperature is specified at a range of -25ºC to 105ºC.
Each of these new space saving, low profile power inductors are designed for DC-DC converter applications in cell phones, smart phones, DSCs, portable music players and other equipment developed in response to the growing demanding for more compact and thinner mobile devices with more functionality.
Both the BRL2515 and BRFL2518 inductors are 100% RoHS-compliant. The BRL2515 and the BRFL2518 sample price is $0.20/unit.
BRL2515 characteristics:
Ordering Code Inductance Rdc Rated current max [mA]
[µH] [W] Saturation Temperature
current rise current
BRL2515T1R0M 1.0 0.070 1,500 1,350
BRL2515T1R5M 1.5 0.100 1,200 1,150
BRL2515T2R2M 2.2 0.135 1,000 1,000
BRL2515T3R3MD 3.3 0.215 800 750
BRL2515T4R7MD 4.7 0.265 650 700
BRFL2518 characteristics:
Ordering Code Inductance Rdc Rated current max [mA]
[µH] [W] Saturation Temperature
current rise current
BRFL2518T1R0M 1.0 0.09 1,200 1,200
BRFL2518T1R5M 1.5 0.11 1,100 1,000
BRFL2518T2R2M 2.2 0.13 850 950
BRFL2518T3R3M 3.3 0.22 700 700
BRFL2518T4R7M 4.7 0.33 650 650
For more detailed specifications, click here for the BRL2515 or click here for the BRFL2518.
About TAIYO YUDEN:
Now in its 60th year, Tokyo-based TAIYO YUDEN CO., LTD. is a worldwide manufacturer of surface-mount and leaded passive components, wireless modules, energy device, SAW/ FBAR devices. The company's North American affiliate, TAIYO YUDEN (U.S.A.), INC., operates sales and engineering offices in Chicago IL, Boston MA, Raleigh NC, Irving TX, Denver CO and in California at San Jose and San Diego, and Ontario Canada.
For more information, visit www.t-yuden.com, or contact TAIYO YUDEN (U.S.A.) INC., 1930 Thoreau Drive, Suite 190, Schaumburg, IL 60173, Phone: (847) 925-0888, E-mail: sales@t-yuden.com.
|
|
|
|
|
|
|
|
