Compact Backplane is compliant with PICMG 3.0 specification.
April 15, 2009 -
Featuring 18-layer controlled-impedance stripline design, 6-slot AdvancedTCA Backplane in Mesh topology can also be used in Dual Star topology implementations. Compact backplane features standard MicroTCA connectors and fits within 5U horizontal ATCA enclosure, along with 2 shelf manager connectors within card cage. Connectors are also available for SHMC, power entry, Sense, I2C Bus, IPMB, Ring, and fan trays.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Elma Bustronic
44350 Grimmer Blvd.
Fremont, CA, 94538
USA

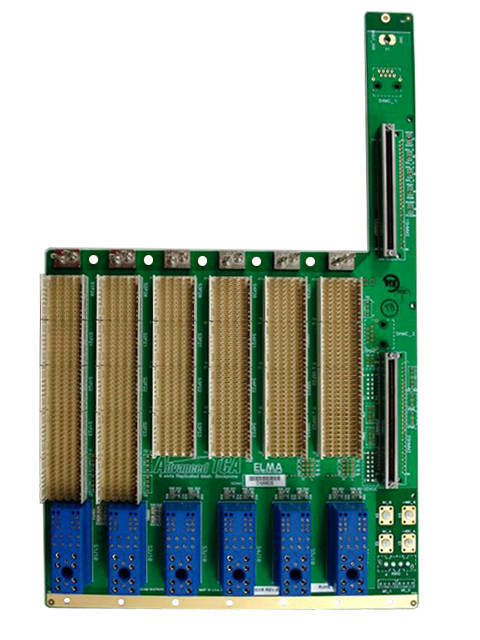

Bustronic Announces 6-Slot ATCA Backplane
FREMONT, California, Mar 25, 2009, - Elma Bustronic Corporation, an industry leading designer and manufacturer of high performance backplanes has announced a 6-slot AdvancedTCA Backplane in a Mesh topology. The flexible design also allows a Dual Star topology to be implemented.
The 6-slot ATCA backplane now features standard MicroTCA connectors used for connections to Elma's IPM Sentry shelf manager. The small and dense connector minimizes the space used on the backplane. The 6-slot is compact enough to fit within a 5U horizontal ATCA enclosure, along with 2 shelf manager connectors within the card cage. This is among the densest ATCA design in the marketplace.
Compliant to the latest PICMG 3.0 specification, the 6-slot ATCA backplane features an 18-layer controlled-impedance stripline design. There are also connectors for SHMC, power entry, Sense, I2C Bus, IPMB, Ring, and fan trays. Bustronic also offers ATCA backplanes in 2, 5, and 14-slot Mesh configurations and a 14-slot Dual Star design.
The lead-time is 4-6 weeks ARO.
About ELMA BUSTRONIC:
Founded in 1989, Elma Bustronic specializes in the design and manufacture of high-performance backplanes. Elma Bustronic has a complete line of industry-standard backplanes, including CompactPCI, VME, VME64x, H.110 CT, VXI, VXS, and ATCA. Elma Bustronic's custom design service combines creative engineering, highly sophisticated computer simulation and modern design techniques to offer customized backplanes that meet the most specialized system requirements. A member of the ELMA Electronic group, Elma Bustronic is located in Fremont, California. Elma Bustronic is a member of PICMG(TM), VITA, and the StarFabric Trade Association and can be found on the World Wide Web at www.elmabustronic.com.
|
|
|
|
|
|
|
|
