Collet Block accepts all collet shapes.
August 28, 2002 -
Model A2-5 16C collet block can be mounted on any horizontal or vertical machining center for assembly, inspection, and surface grinding applications. It accepts all standard 16C round, hexagon, square, and special-shape collets up to 8 in. dia, step chucks, and Sure-Grip® expanding collet systems. Adapter allows 5C tooling to be used. Collet block is pneumatically actuated with manually operated valve that can be directly connected to shop air supply.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Hardinge Workholding Division
One Hardinge Dr.
Elmira, NY, 14902
USA

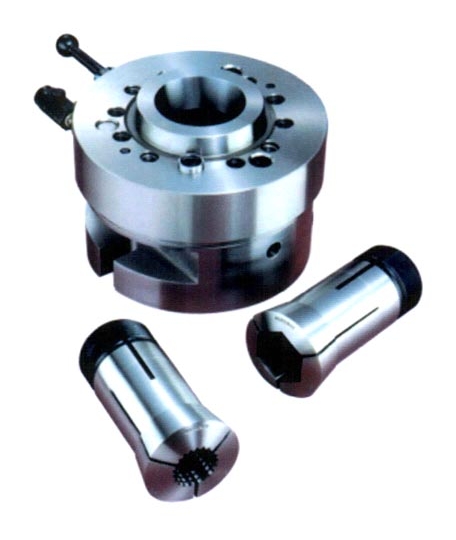

A2-5 16C Pneumatic Collet Block
The Hardinge® 16C collet block, manufactured in Elmira, New York, will be on display at IMTS in booth A-8000. This handy pneumatic collet block can be mounted on any horizontal or vertical machining center in any production environment, for any tool room application, assembly operation or inspection and surface grinding applications. It accepts all standard 16C round, hexagon, square and special-shape collets, step chucks and Hardinge Sure-Grip® expanding collet systems. 5C tooling can also be used with a simple collet adapter. The collet block is pneumatically actuated with a manually operated valve. The valve assembly is included for direct connection to the shop air supply.
Give your operator more job flexibility using this A2-5 spindle nose for work up to 8" diameter. Hardinge's 16C collet block takes the problem out of holding round and special-shaped parts in milling applications, and is ideal for second operation work. The inherent Dead-Length® design gives precision length control using standard 16C products.
Use them individually mounting directly to the machine table, or group them together on a sub plate to machine multiple parts in one setup. Maximize your machining productivity and decrease your operational costs!
Hardinge Inc. manufactures a full line of off-the-shelf A2-5 16C spindle tooling to accommodate this collet block, as well as nonstandard products for special requirements. Request brochure #2365 for additional information. Order online at www.hardingetooling.com, phone 800-843-8801, or fax 607-734-3886. Hardinge Inc., One Hardinge Drive, Elmira, New York 14902-1507. Visit other Hardinge websites at the following locations: www.hardingeworkholding.com (detailed workholding product information and catalog pdf files); www.hardinge.com (machine tools).
|
|
|
|
|
|
|
|
