Coaxial Resonator Oscillator provides frequency doubling.
March 12, 2013 -
Consisting of coaxial-based VCO with internal frequency doubler, Model CVCO55CXT-5270-5375 operates from 5,270–5,375 MHz with tuning voltage of 0.3–4.7 Vdc. Oscillator features typical phase noise of -102 dBc/Hz at 10 KHz offset. Unit exhibits output power of 0.0 dBm into 50 Ω load with supply of +5.0 Vdc and current consumption of 30 mA max. Housed in 0.5 x 0.5 in. package, CRO is suited for digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
|Original Press release |
12730 Commonwealth Dr.
Fort Myers, FL, 33913

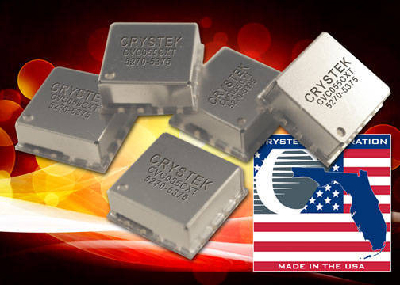

Crystek Maximizes Performance and Efficiency in New 5270-5375 MHZ Coaxial Resonator Oscillator (CRO)
Fort Myers, FL – Crystek’s new CVCO55CXT-5270-5375 Coaxial Resonator Oscillator (CRO) is a coaxial-based VCO with an internal proprietary frequency doubler. The CVCO55CXT family’s frequency doubling, 2X fundamental technology reaches new performance levels of lower phase noise and much lower harmonics over the competition, while achieving lower current consumption in the process.
The CVCO55CXT-5270-5375 operates from 5270 to 5375 MHz with a tuning voltage range of 0.3 Vdc to 4.7 Vdc. This coaxial VCO features a typical phase noise of -102 dBc/Hz @ 10KHz offset and has good linearity. The CVCO55CXT-5270-5375 CRO exhibits an output power of 0.0 dBm typ. into a 50 ohm load with a supply of +5.0 Vdc and a current consumption of 30 mA (max.).
Engineered and manufactured in the USA, the CVCO55CXT-5270-5375 CRO is packaged in the industry-standard 0.5-in x 0.5-in package. Pushing and Pulling are both minimized to 1.5 MHz/V and 0.5 MHz, respectively. Second harmonic suppression is -30 dBc typical.
The CVCO55CXT-5270-5375 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
For pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com. For more information, contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913. Tel: 800-237-3061 or 239-561-3311; Fax: 239-561-1025; E-mail: firstname.lastname@example.org; Web: www.crystek.com.
Crystek Corporation® has been providing frequency products since 1958, including quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), and VCXOs (voltage controlled crystal oscillators). Crystek operates two divisions dedicated to frequency control. Crystek Crystal is dedicated to the development and manufacture of frequency products using quartz-based resonators. Crystek Microwave develops of frequency control and support products for the microwave industry.
