Coaxial Amplifier offers flat gain and high dynamic range.
March 6, 2013 -

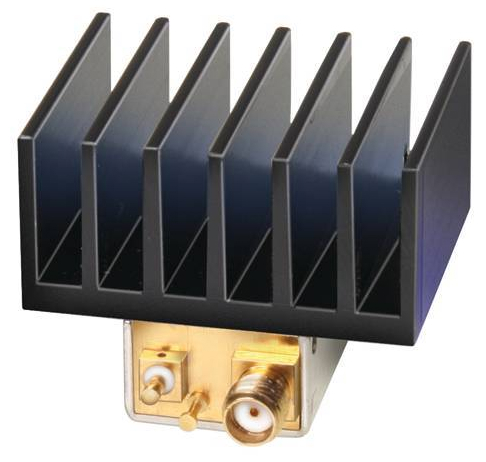

Supporting use in various applications, ZX60-100VH+ is supplied in miniature shielded rugged case and delivers signals from 300 kHz to 100 MHz at up to 30 dBm output power. This 36 dB coaxial amplifier, operating on single +12 V supply, exhibits gain flatness of ±0.3 dB across full frequency range. RoHS-compliant, unconditionally stable amplifier, suited for use in difficult and rugged conditions, offers dynamic range with 4 dB noise figure and IP3 of +43 dBm.
Original Press release
Mini-Circuits
P.O. Box 350166
Brooklyn, NY, 11235
USA
New Flat Gain/High Dynamic Range Coaxial Amplifier!
Mini-Circuits is pushing its industry-leading lineup of wideband RF, IF, and microwave products even wider, to deliver higher levels of performance for both new and old applications, and meet the “big picture” requirements of the engineers who design and build them! Introducing a coaxial amplifier with miniature shielded rugged case with wide frequency range and excellent gain flatness has a broad range of applications.
The ZX60-100VH+ is an incredibly useful 36 dB amplifier, delivering signals from 300 kHz to 100 MHz at up to 30 dBm output power. Operating on a single +12V supply, it features excellent gain flatness of ±0.3 dB across its full frequency range, as well as a high dynamic range, with a 4-dB noise figure and an IP3 of +43 dBm!
Applications include; buffer amplifier, driver amplifier, HF communication, lab, instrumentation and test equipment engineering applications. Unconditionally stable amplifier for difficult and rugged conditions is RoHS compliant. See our website for data spec on this and all our coaxial, surface mount and plug in amplifiers and featuring the latest in MMIC's (microwave monolithic intergrated circuit amplifiers).
For more information on these, and all the rest of our newest products, just go to the New Product Announcements section at minicircuits.com!
|
|
|
|
|
|
|
|
