Clinometer accurately measures inclination.
November 15, 2001 -
Portable digital clinometer measures inclination relative to gravity. Battery-powered instrument is 4 x 3 x 1.3 in. and measures ± 45° with 0.01° resolution and accuracy within 2 min of arc. Display indicates results in degrees, minutes of arc, mm/meter, in./12 in. and mm or in./user-defined relative base. Automatic setting to absolute or relative zero measuring modes is also selectable by push button. It makes angle measurement in any quadrant.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Taylor Hobson, Inc.
1725 Western Dr.
West Chicago, IL, 60185
USA

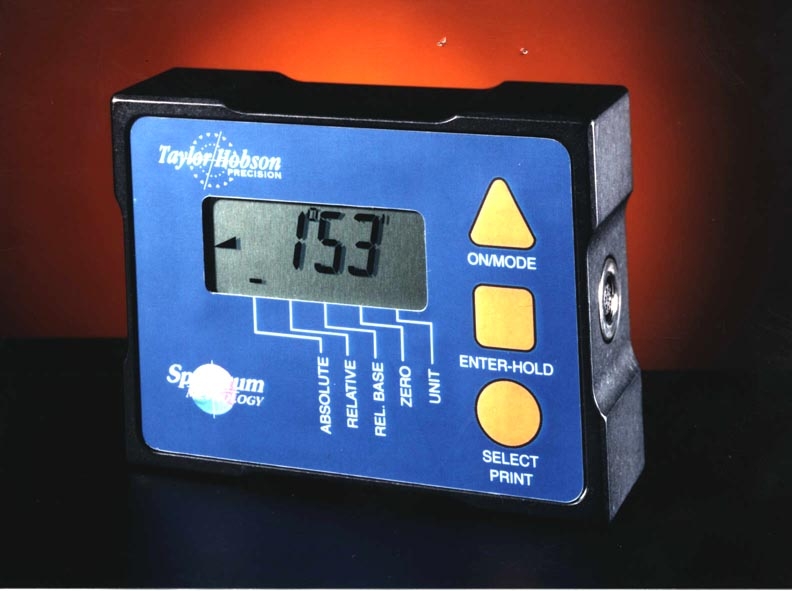

Digital Clinometer for Precise Angle Measurements
Clinometers have been used for measuring inclination relative to gravity for nearly one hundred years. The first mechanical units manufactured by Taylor Hobson were used for sighting in artillery cannons during World War I. High accuracy over a wide range has always made the instruments ideal for aerospace, defense and civil engineering work. Now the company has introduced a digital clinometer that is practical for a wider range of applications. Battery power, sturdy construction and compact size (4"x3"x1.3") make it suitable for use anywhere.
Measuring range is +/- 45 degrees with 0.01 degrees resolution and accuracy within 2 minutes of arc. Display units are push button selectable to indicate results in degrees, minutes of arc, mm/meter, inch/12 inches and mm or inch/user defined relative base. Automatic setting to absolute or relative zero measuring modes is also selectable by push button. All four sides of the hard-anodized aluminum frame are precision machined to make possible angle measurement in any quadrant. A built in calibration program ensures that the calibration is always current and correct.
|
|
