Clamp suits milling and lathe operations.
April 26, 2006 -
SIDE-LOC Xpansion clamp holds parts on bore when tapered screw is not accessible. Turning socket head cam on side moves tapered plunger to expand clamp. Locking ring provides accurate preset diameter and rigidity for machining. Designed in two styles, mill version can be machined from 1.120-.710 in. and lathe version from 2.09-.710 in. Lathe version has straight mounting shanks of 1 in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Mitee-Bite Products Inc.
340 Rte. 16B, P.O.box 430
Center Ossipee, NH, 03814
USA

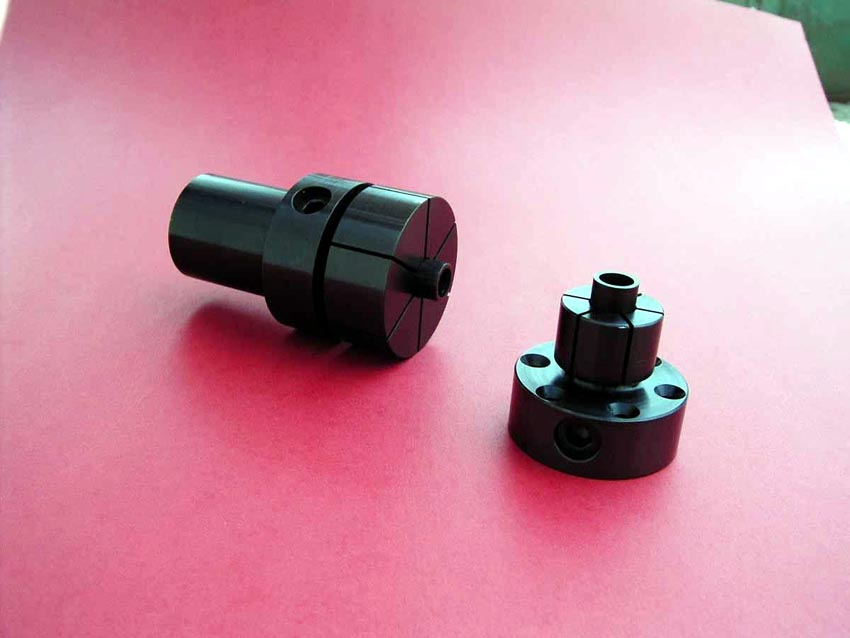

SIDE-LOC Xpansion Clamp
Mitee-Bite introduces a new style clamp to its range of ID Xpansion clamps, the
SIDE-LOC Xpansion clamp which is an ideal way to hold parts on the bore when you
can not access the tapered screw. The SIDE-LOC clamp is actuated by turning a socket
head cam, on the side, which moves a tapered plunger to expand the clamp. The locking
ring provides accurate preset diameter and rigidity for machining.
Like our original ID Xpansion clamps, the SIDE-LOC clamp has the dead length feature
which is critical for close tolerance dimensions.
The SIDE-LOC clamp is designed in two styles, one for milling operations and one for
lathe applications. Presently one size is available for each model. The mill SIDE-LOC
clamp can be machined from 1.120 to .710 and the lathe version from 2.09 to .710.
The lathe version has straight mounting shanks of 1".
For More information contact
Mitee-Bite Products Inc.
Center Ossipee NH
800-543-3580
www.miteebite.com
|
|
|
|
